Fanless Intel Core Intel i7 8550u 8565u i7 10510U Mini pc windows10 Desktop Computer Linux Ubuntu HTPC

Fanless Intel Core Intel i7 8550u 8565u i7 10510U Mini pc windows10 Desktop Computer Linux Ubuntu HTPC Item NO.: P05B-I7

Write a Review
US$ 388.83
US$ 409.29 Save US$ 20.46 (5% Off)
CPU
Core i7 8550u Core i7 10510u
Memory
NO RAM 8GB DDR4 16GB DDR4 32GB DDR4 64GB DDR4
Storage
NO Storage 128GB SSD 256GB SSD 512GB SSD 1TB SSD 256GB SSD 1TB HDD 512GB SSD 1TB HDD
Customized Requirements
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name Fanless Intel Core Intel i7 8550u 8565u i7 10510U Mini pc windows10 Desktop Computer Linux Ubuntu HTPC
Item NO. P05B-I7
Weight 3 kg = 6.6139 lb = 105.8219 oz
Category Fanless Mini PC
Brand VENOEN
Creation Time 2020-09-27


Feature:
1)-Advanced newest intel processor, assure powerful performance for gaming, office, drawing;
2)- 2*DDR4 RAM slots 2xfaster than 1 ram slot, DDR4 2xfaster than DDR3;
3)- Noiseless: Fanless system, all aluminum passive heatsink, low consumption, 0.00dB noise;

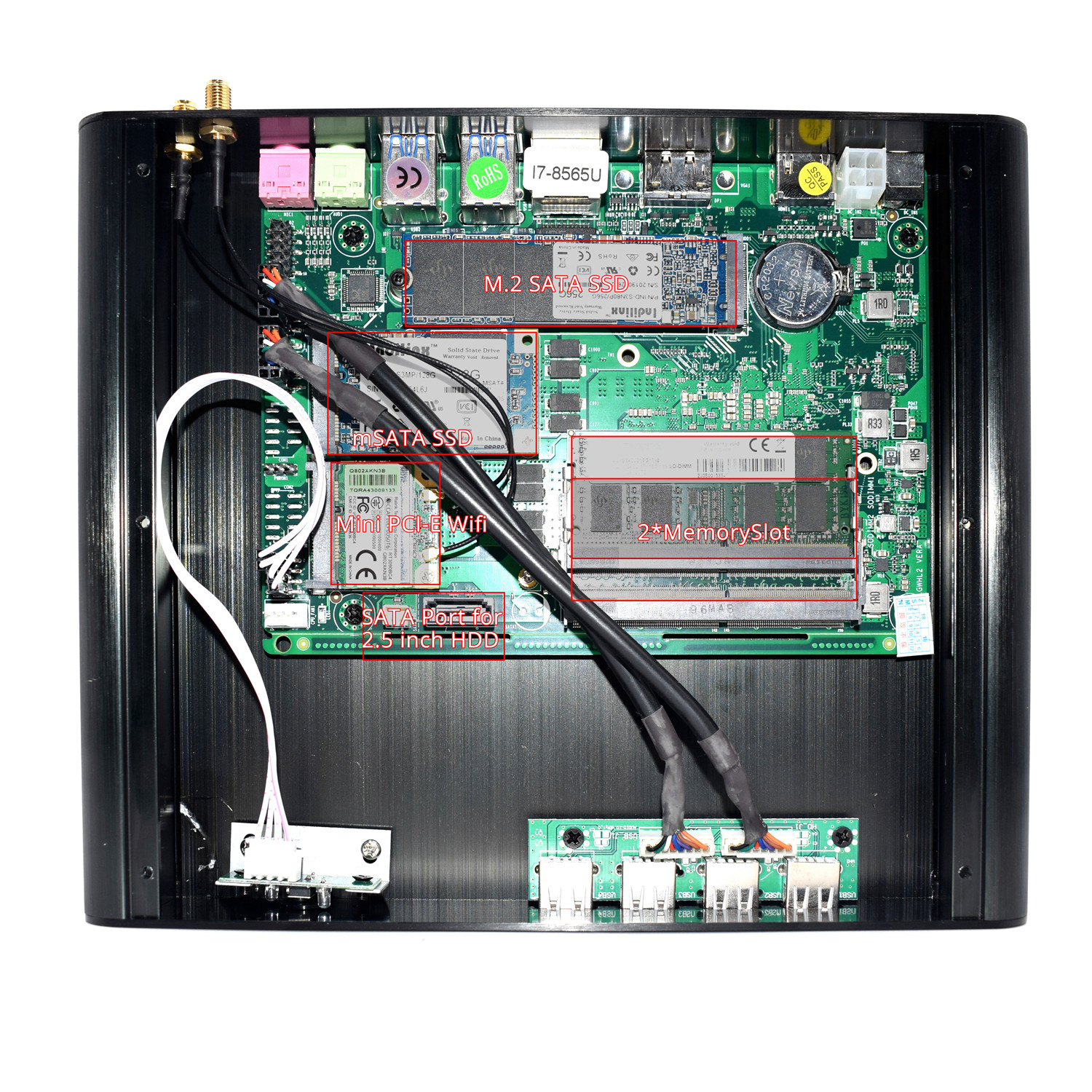

4)- Tripe-Storage support: 1*Msata SSD+1*M.2 NVMe/NGFF(22x80) SSD+1*2.5'' SATA3.0 HDD/SSD;
5)- Slim volume: Can stand on desk by free bracket we supply, mount back of monitor by VESA bracket;



Processor Performance:

Intel Core i7 8550U 1.8GHz Max 4.0GHz (Turbo boost Technology) 4 Core 8 thread, Intel UHD 620 graphics.
Intel Core i7 8565U 1.8GHz Max 4.6GHz (Turbo boost Technology) 4 Core 8 thread, Intel UHD 620 graphics.
Intel Core i7-10510U 8M Cache, 1.8 -4.9GHz,4 core 8 thread Intel UHD Graphics


Processor

CPU

Intel Core i7-8565U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.60 GHz)

Intel Core i7-10510U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.90 GHz)

TDP

15W

CPU Lithography

14 nm

Memory Specifications

Max Memory Size

64GB

Memory Types

260 pin DDR4 SO-DIMMs

Memory Channels

Dual Channels

ECC Memory

Don’t support

Storage Specification

m.2 SSD

1 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME)

SATA

1 x SATA3.0 for 2.5 inch HDD/SSD

mSATA

1*mSATA slot

Graphics

Processor Graphics

Intel® UHD Graphics 620

HDMI

1 * HDMI 2.0 (4K)

DP Port

  1*DP

Power Specification

Power Adapter

12V Power Input, supply 12V 5A power adapter within the package

Auto Power On

Support Auto Power On Function

In & Out interfaces

USB Port

4 x USB 3.0 port, 4 x USB 2.0 port

Audio

3.5mm 1 Jack, MIC in/ Line out

Video

HDMI+DP Dual Display

Power Input

5.5mm 12V In

Lan Port

1* RTL8168/8111/8112 Gigabit NIC

Com Port

No

Others

System

Support Windows 7/10, Linux

Case Material

Aluminium Alloy

Dimension

Mini PC size 223*185*49mm

Package size 320*260*80mm

Weight

Gross weight 2.7 kg
