Fanless Mini PC Intel core i5 8250U i7 8550U HDMI 2.0 DP EDP RS232/485 COM Industrial Dekstop Computer

Fanless Mini PC Intel core i5 8250U i7 8550U HDMI 2.0 DP EDP RS232/485 COM Industrial Dekstop Computer Item NO.: VH4-L

Write a Review
US$ 499.70
Processor
Intel Core i5 8250U Intel Core i7 8550U
Memory
NO RAM 4G RAM 8G RAM 16G RAM 32G RAM 64G RAM
Hard Disk
NO SSD 128G NVME SSD 256G NVME SSD 512G NVME SSD 1T NVME SSD 256G NVME SSD 1T HDD 512G NVME SSD 1T HDD
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name Fanless Mini PC Intel core i5 8250U i7 8550U HDMI 2.0 DP EDP RS232/485 COM Industrial Dekstop Computer
Item NO. VH4-L
Weight 3 kg = 6.6139 lb = 105.8219 oz
Category Industrial PC > 2 Lan Industrial PC
Tag Fanless Mini PC , RS485/232 COM , 3 Display ports , Business Computer , HD 4K Mini PC
Brand VENOEN
Creation Time 2020-09-24


H4 Mini PC high light:

1. Intel 8th Gen Core i5-8250U and i7-8550U Quad Core Processor, max Turbo 3.4GHz up to 4.0GHz.

2. HDMI 2.0 port support 4096×[email protected] UHD Graphics 620 make sure the 4K resolution, HDMI 2.0, DP and EDP support 4096×2160 60P resolution, 3 synchronous display support. Wonderfull gaming performance: Overwatch, CSGO, Fortnite, GTA 5, DOOM and so on.

3. Dual DDR4 260 pin SO-Dimm laptop memory make the mini pc much faster than others with Dual DDR3 memory.

4. Onboard mSATA, m.2 and SATA three storage, enough for your future storage expansion requirements.

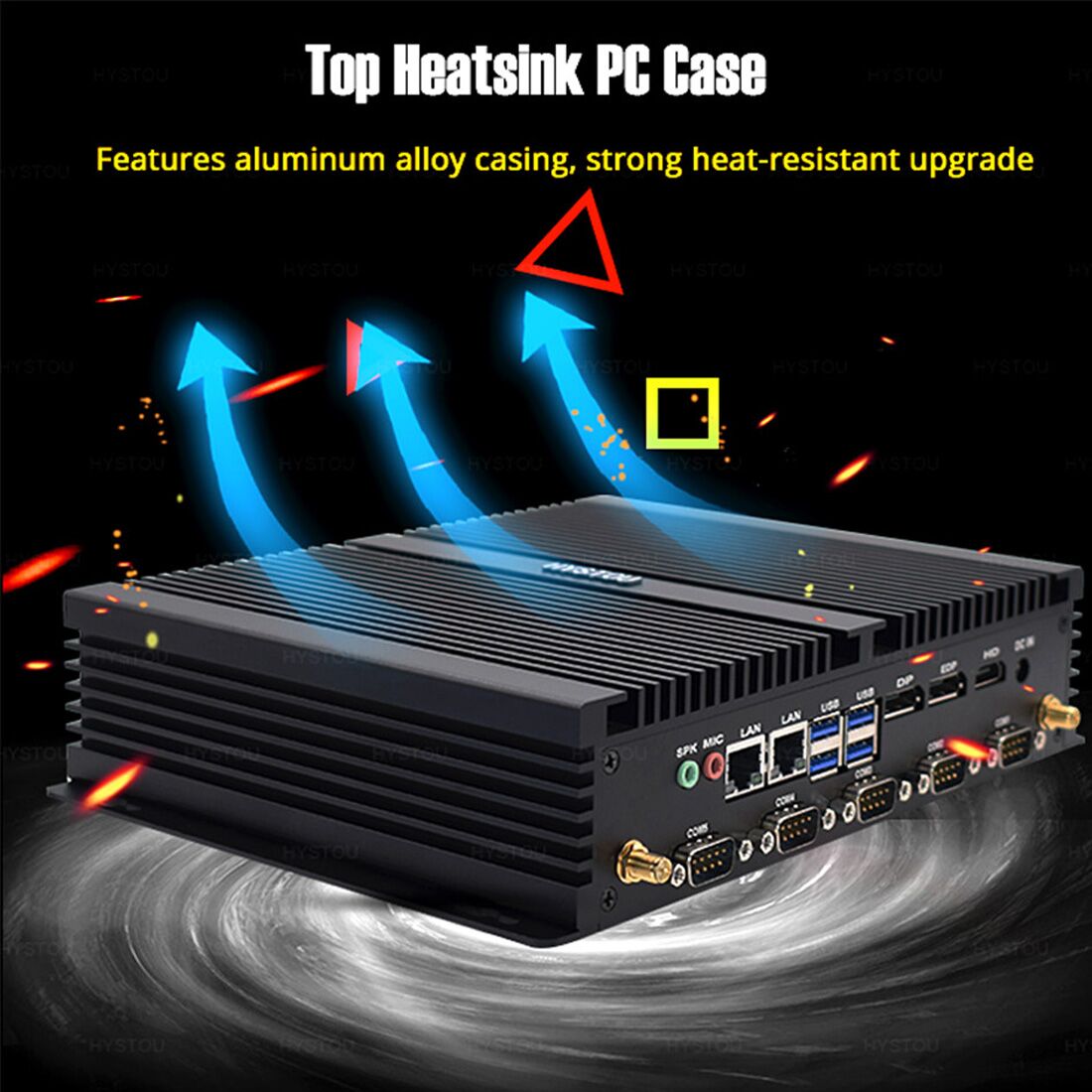

5. Aluminum alloy PC case, heat directly release via the fan pin designed computer chassis.

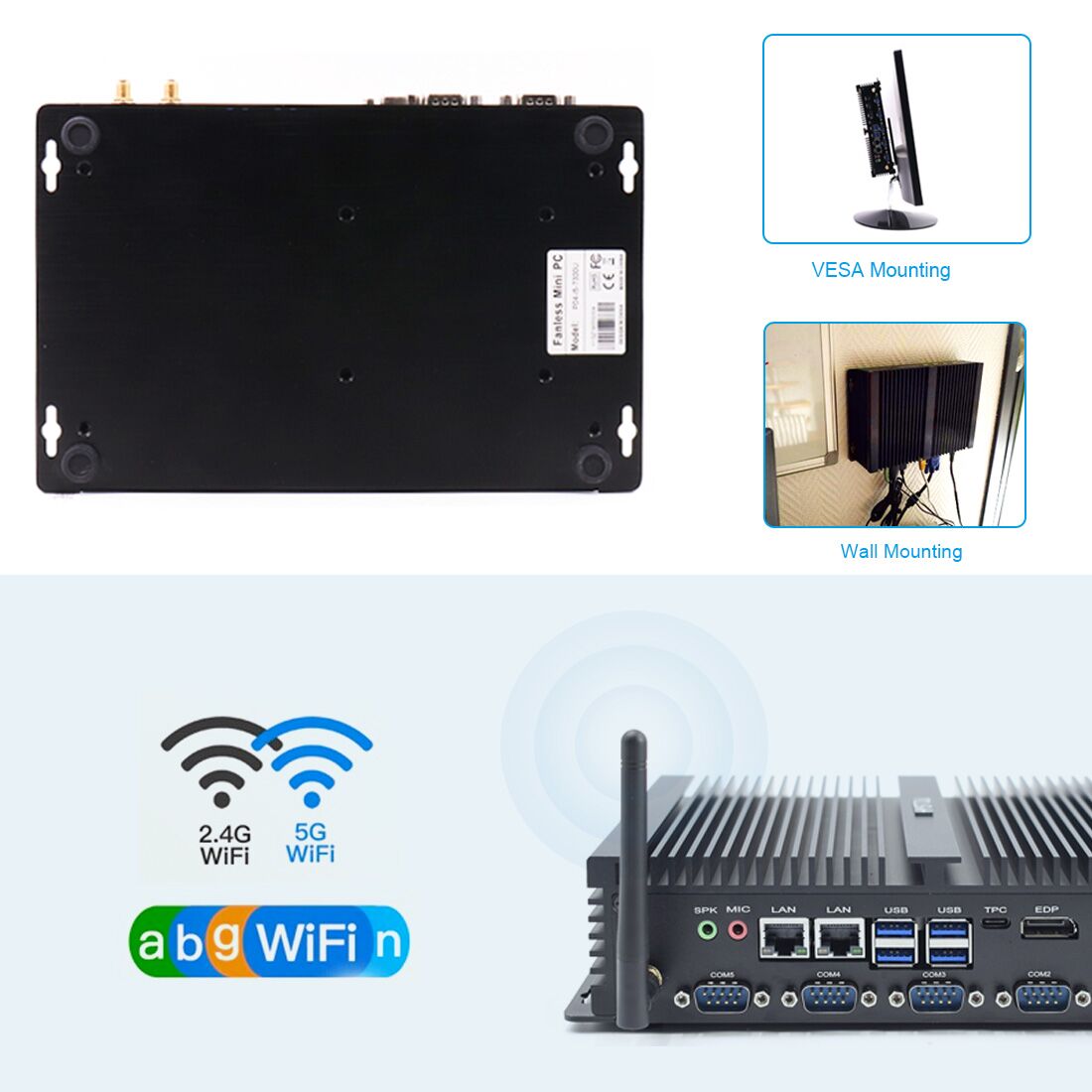

6. With VESA (5 USD extra cost) can be fixed to backside of monitor, using screws can be fixed to wall or desk as per your request.


Available Processors:

1. Intel® Core™ i5-8250U Processor (6M Cache, up to 3.4 GHz);
2. Intel® Core™ i7-8550U Processor (8M Cache, up to 4.0 GHz);




Processor

CPU

Intel Core i3-8145U (4M Cache, 2 Cores 4 Threads, Base Frequency 2.10 GHz Turbo Frequency 3.90    GHz)

Intel Core i5-8265U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.90    GHz)

TDP

15W

CPU Lithography

14 nm

Memory Specifications

Max Memory Size

64GB

Memory Types

260 pin DDR4 SO-DIMMs

Memory Channels

Dual Channels

ECC Memory

Don’t support

Storage Specification

m.2 SSD

1 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME)

SATA

2 x SATA3.0 for 2.5 inch HDD/SSD

mSATA

No mSATA slot

Graphics

Processor Graphics

Intel® UHD Graphics

HDMI

HDMI 2.0 (4K)

DP Port

  1 DP

Power Specification

Power Adapter

12V Power Input, supply 12V 5A power adapter within the package

Auto Power On

Support Auto Power On Function

In & Out interfaces

USB Port

4 x USB 3.1 port, 4 x USB 2.0 port+1 Type C 3.1

Audio

3.5mm 1 Jack, MIC in/ Line out

Video

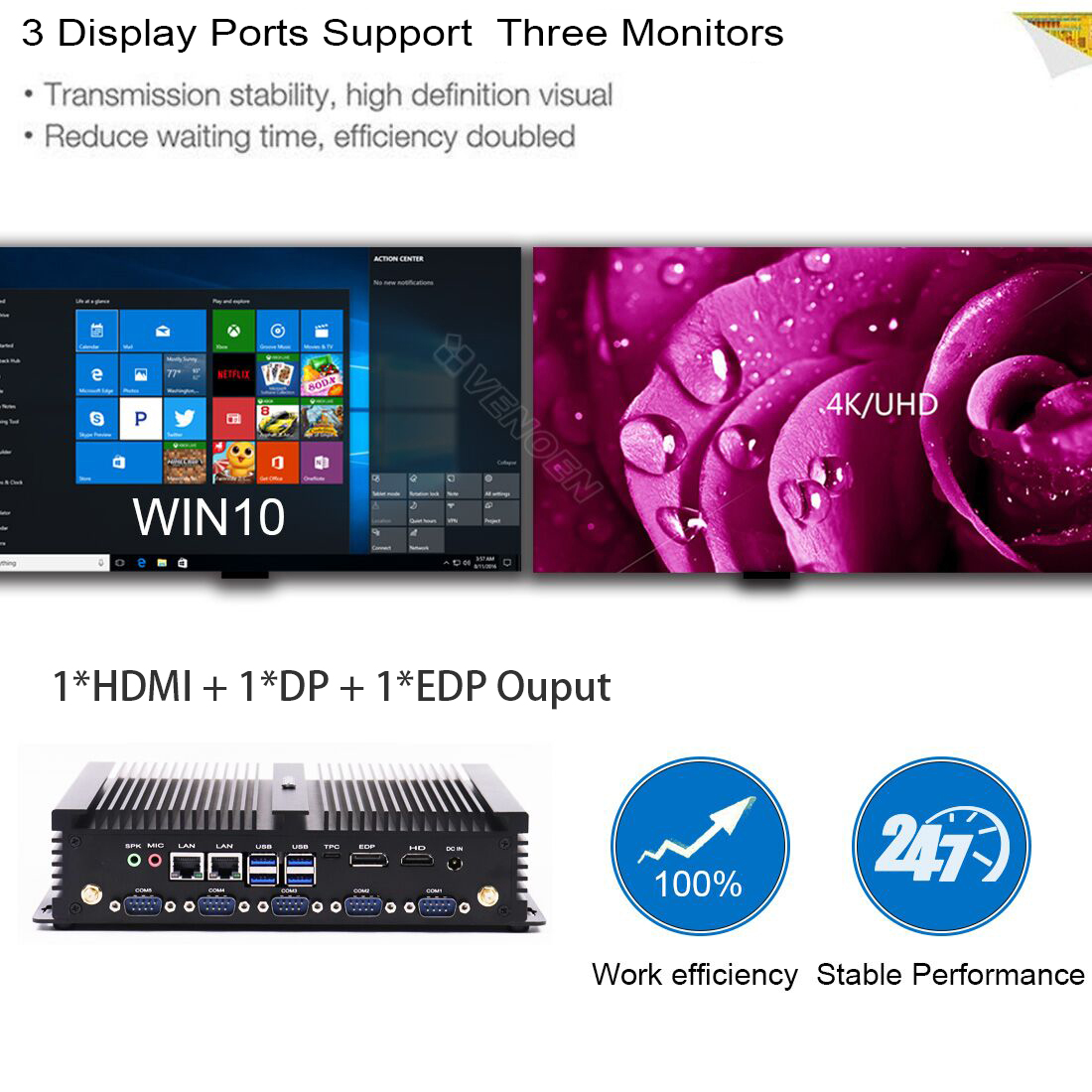

HDMI+EDP+Type C, support 3 Synchronized displays

Power Input

5.5mm 12V In

Lan Port

2 x Intel-I210/I211 Gigabit RJ45 Lan

Com Port

RS232 Com port, 2 RS485 Com port

Others

System

Support Windows 7/10, Linux

Case Material

Aluminium Alloy

Dimension

Mini PC size 237 175 53mm

Package size 320 260 x 80mm

Weight

Gross weight 2.8 kg
