Industrial Embedded Panel PC 10.1 inch Intel Core i3 i5 Celeron J1900 Touch Screen all in one pc Device with rs232 rs485 gpio

Industrial Embedded Panel PC 10.1 inch Intel Core i3 i5 Celeron J1900 Touch Screen all in one pc Device with rs232 rs485 gpio Item NO.: HST1001

Write a Review
US$ 706.05
CPU
Celeron J1900 Core i5 4200U Core I7 4500U
Memory
NO RAM 4GB RAM
Storage
NO Storage 64G SSD 128GB SSD 256G SSD 512GB SSD 1TB SSD 256GB SSD 1TB HDD
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name Industrial Embedded Panel PC 10.1 inch Intel Core i3 i5 Celeron J1900 Touch Screen all in one pc Device with rs232 rs485 gpio
Item NO. HST1001
Weight 5 kg = 11.0231 lb = 176.3698 oz
Category Industrial Tablet PC
Tag industrial panel pc,all in one pc ,10.1inch touch screen
Brand VENOEN
Creation Time 2021-07-13

Industrial tablet PCs are industrial control computers designed for industrial use, and their basic performance and compatibility are similar to those of commercial computers. However, industrial tablet PCs pay more attention to stability in different environments, and require stability in harsh environments, such as dustproof, waterproof, and anti-static. Venoen industrial tablet pc fully meets the above requirements.






Processor Intel Core i5 4200U
Memory Onboard DDR3L 4G memory
Storage support 1*MSATA SSD+1*SATA HDD/SSD+1*M.2 SSD(only for core series)

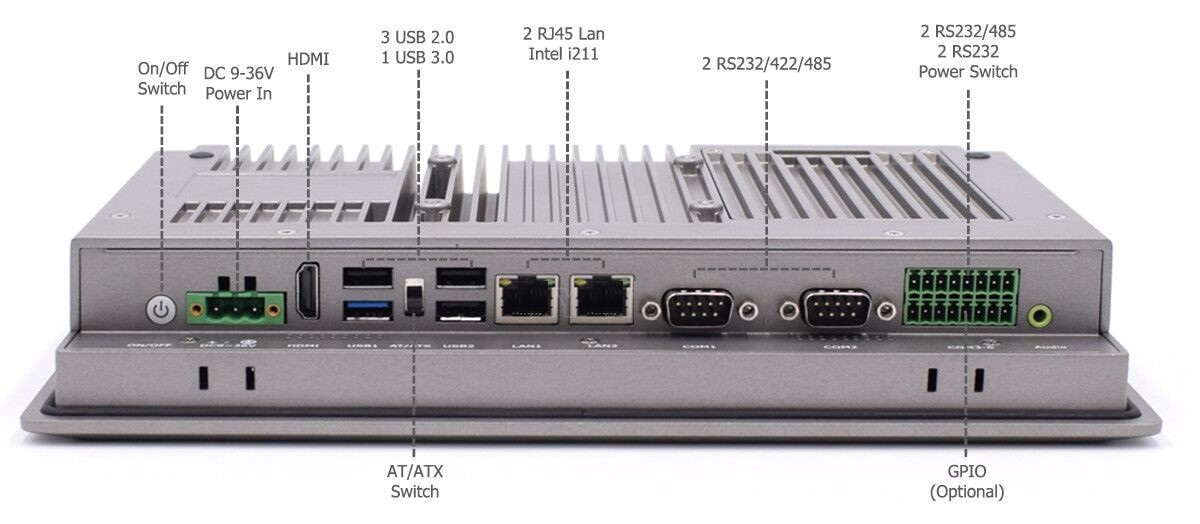

Lan 2*GbE RJ45 [email protected]
  3*USB 2.0,1*USB 3.0,inside 1*USB2.0 dongle interface
  2*DB9-RS232/422/485 COM
  2*3-wire RS232/485 COM phoenix terminal
  2*3-wire RS232 COM phoenix terminal
Interface Port 1* Audio line-out
  2*8Ω 1W Speak out(optional)
  1*phoenix terminal DC 9-36V Input
  1*AT/ATX Switch
  1*HD output
  1*14bit GPIO(Optional)
WIFI 1x full height Mini PCI-E,onboard SIM slot, support 3G/4G
Resolution 16.2M Color, 1280*800 ( 1280*600 optional)
Panel TFT LCD (support 10.1” 12.1” 15.1” 17”)
Backlight Hour (LED )30,000
Brightness 400cd/m²
Visual -85~85°(H) -85~85°(V)
Type 5 wire resistance type
Dimen 289.53*192.44*48.3MM(for 10.1”)
Weight NW: 2.7KG, GW: 4.5kg(10.1“ weight, also support 12.1” 15”)
