P16 Series Fanless IPC, Dual Lan, SIM card Slot ,HDMI VGA, embedded Industrial Mini Computer

P16

-One embedded SIM card slot onboard for 3G/4G Wi-Fi module.
-Support 1*HDMI+1*VGA dual display output synchronously.
-Support Windows 7/8/10, WES 7/10, LINUX (Only i5-4278U, i7-4578U, i3-6157U support Windows 7).
-Support Watch dog, Diskless boot.
-CE, FCC, ROHS, BIS, Energy Star certification
-Widespread applications such as office, school, bank, supermarket, service center, hospital, POS, HTPC, CCTV, etc.

CPU:

intel Core i5 4258U

intel Core i7 4578U

Memory:

8G DDR3L

4G DDR3L

2G DDR3L

Storage SSD:

1TB SSD

512G SSD

256G SSD

128G SSD

64G SSD

32G SSD

No SSD

Wireless Kit:

WiFi wtih Bluetooth Kit

3G/4G Module

Operating System(Os):

Debian

Ubuntu

Linux

Windows 11

Windows IOT

Windows 10

Storage HDD:

4TB HDD

2TB HDD

1TB HDD

NO HDD

Quantity:

Contact Now

add to cart

CPUs	Intel Core i5 1235U Processor, 10 Cores 12 Threads, Base frequency 1.7GHz, up to 4.4GHz
Memory Types	1 x DDR5 262pin SODIMM, maximum support 32G, memory frequency: 4800MHz
Hard Disk	1 x M.2 NVME SSD
Hard Disk	1 x SATA3.0 uesd for 2.5inch SSD/HDD
Graphics	Intel® Iris® Xe Graphics
Audio Chip	1 x 3.5mm MIC in & SPK out
Audio Chip	ALC662 HD Audio, 6 channel sound

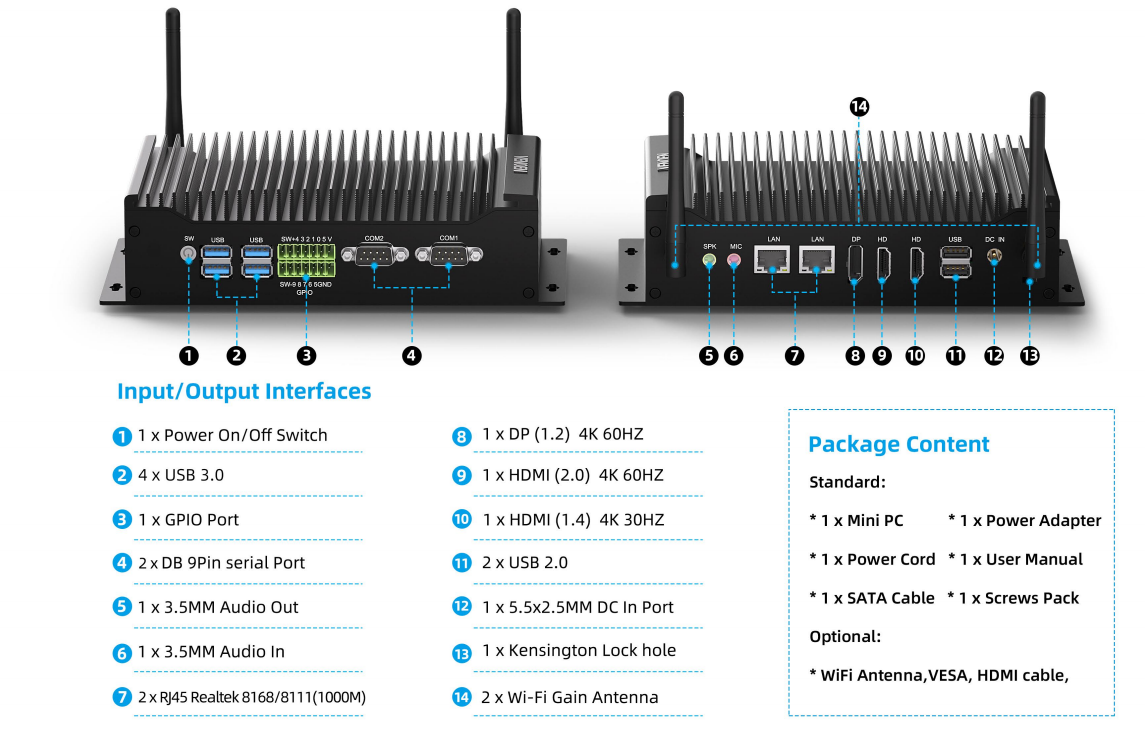

Front I/O	4 x USB 2.0(Type-A)
	4 x USB 3.0(Type-A)
	2 x RS232 COM
	1 x On/Off Switch
Rear I/O	Plan 1：2 x HDMI 1.4, supports up to 4K 30HZ resolutionrefresh rate. Plan 2：1 x HDMI+1 x VGA （The Prices Of The Two Versions Of Interface Chassis Are The Same, Please Choose According To Your Needs.）
	2 x RJ45, Realtek 8168/8111 (1000M)
	1 x 12V DC In
	1 x 3.5mm MIC in & SPK out
	1 x Kensington lock hole, used for connecting Kensington locks.
	2 x antenna ports for WIFI/3G/4G
Internal I/O	1 x SIM slot, suitable for Nano-SIM card, SIM size: 9MM*12MM
Power Adapter	12V 6A or 19V 4.74A
OS Support	Windows 10
	Windows 11
	Linux
Features	Support AUTO POWER ON,Wake On LAN,PXE,Resume By Alarm
Features	Support TPM2.0
Working Temperature	10℃ TO ﹢50℃
Storage Temperature	﹣10℃ TO ﹢60℃, 30%~90% non-condensing

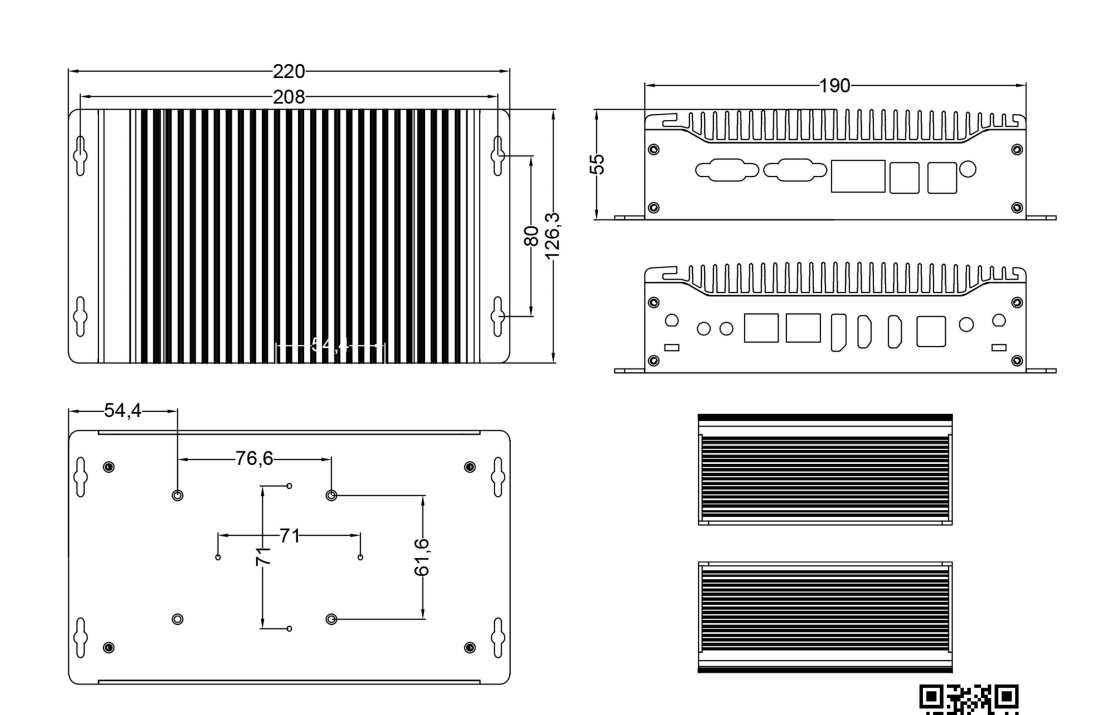

Dimension	194 x 127 x 58mm
Construction	Fanless passive cooling aluminum chassis
Package	1 x Mini PC
	1 x AC adapter
	1 x Power cord
	1 x SATA cable
	1 x User guide
