P09B Firewall Mini PC Celeron J4125 /N5105, Pfsense, 4*2.5G LAN ,SIM 3G/4G
-2xDDR4 SODIMM non-ecc ram slot, max support 64GB.
-Support two storage: 1xM.2 NVMe/PCIe3.0x2 2280 SSD+1x2.5''SATA SSD/HDD.
-Support 1xHDMI2.0(4K@60Hz)+1xVGA dual display output synchronously and asynchronously.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy high quality solid-built shell with three-sided ice thorns, excellent cooling performance, Exquisite production craft on outside design.
-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.
-Low consumption TDP only 10W and can be mounted back of monitor by VESA bracket(optional).

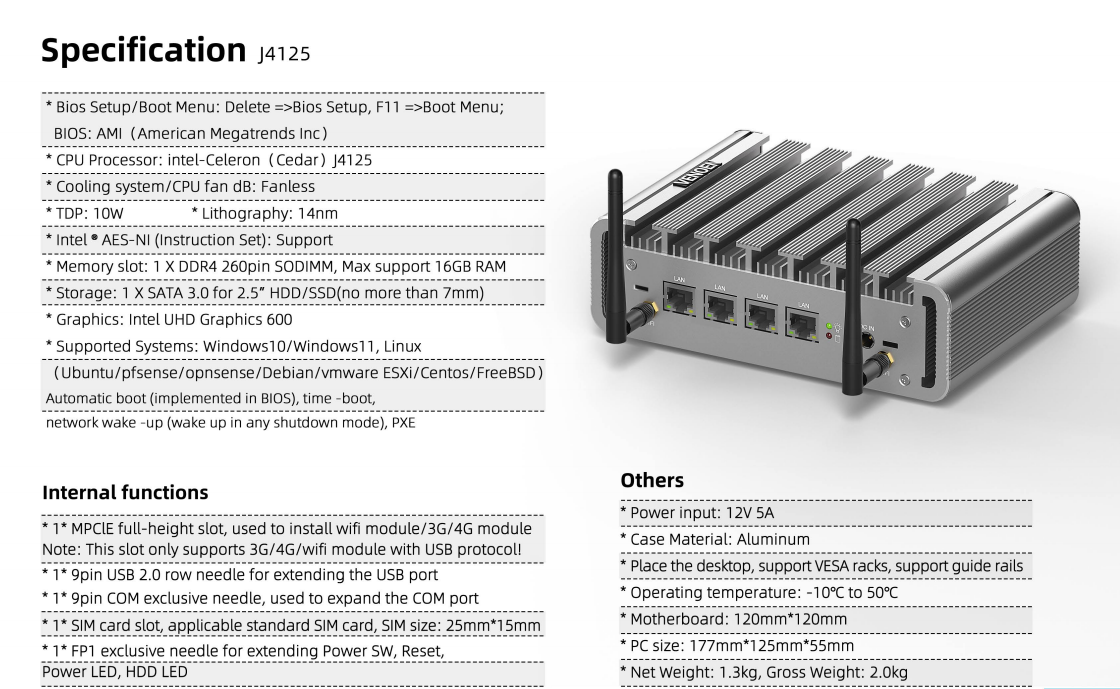

Basic information | |
CPU | Intel Celeron J4125 4 Cores/4 Threads, Base Frequency: 2.00GHz(Max 2.70GHz) |
Memory | 1 * DDR4 SO-DIMM Socket up to 16GB RAM,2400Mhz |
Graphics | Intel HD Graphics 620 |
LAN | 4 * GbE Intel i226 Nics |
Expansion Options | 1 * MSATA 1 * SATA 3.0 slot for 2.5 inch HDD or SSD Supports a maximum capacity of 4 TB and a thickness of 7MM or less |
WiFi | |
Module | 1 * half height Mini PCI-E Wi-Fi Module |
Antenna | 2 * External Wifi Antennas |

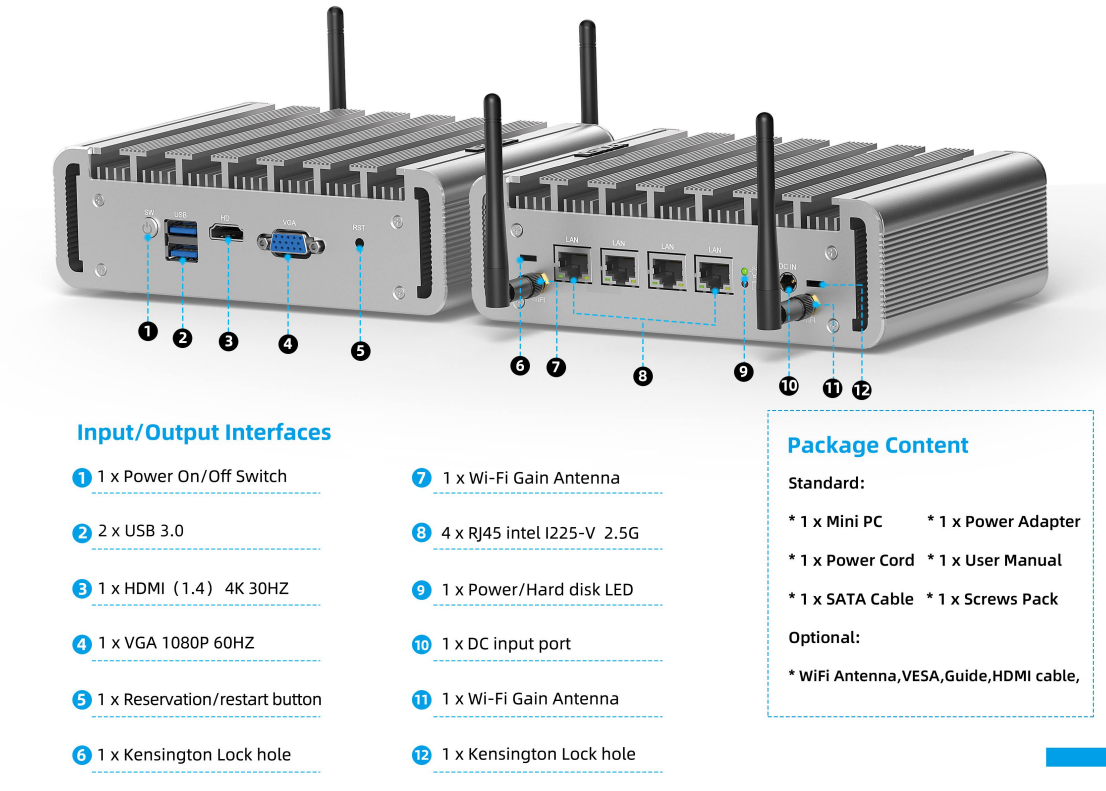

Input/output Ports | |
Rear I/O | 2 * USB3.0 (Type-A） |
1 * DC input port , DC size: 5.5 x 2.5MM | |
4 * RJ45 intel I225/I226-V 2.5G | |
1 * Switch button, 1 * reset/restart button | |
1 * Power LED, 1* hard disk LED | |
2 * external antenna interface for WIFI module /4G module signal gain | |
1 * HDMI（1.4） 4K 30HZ | |
1 * VGA 1080P 60HZ | |
Motherboard interface | 1 * MPCIE full-height slot, used to install WIFI module /3G /4G module, default installation WIFI4, optional WIFI5, BT4.2. Note: WIFI module or 4G module 2 choose 1 |
1 * 9pin COM row pins, used to expand COM ports | |
1 * 9pin USB 2.0 row pins, used to expand USB ports | |
1 * SMI card slot, suitable for Nano-SIM card, SIM size: 25mm*15mm | |
1 * FP1 row of pins for expanding Power sw,Reset,Power LED,HDD LED | |
Others | |
Expected Life Cycle | 5 Years |
Warranty | 3 years included; 4 or 5 year options available |
Power | 12V 5A External Power Adapter |
Temperature | -10℃~50℃ |
Humidity | 10%-90% relative humidity |
OS | Windows 10/11, Linux, Ubuntu, Debian, Etc. |
Other | Support Watch dog . Diskless boot.PXE |
Mechanical | |
Material | Aluminum Alloy |

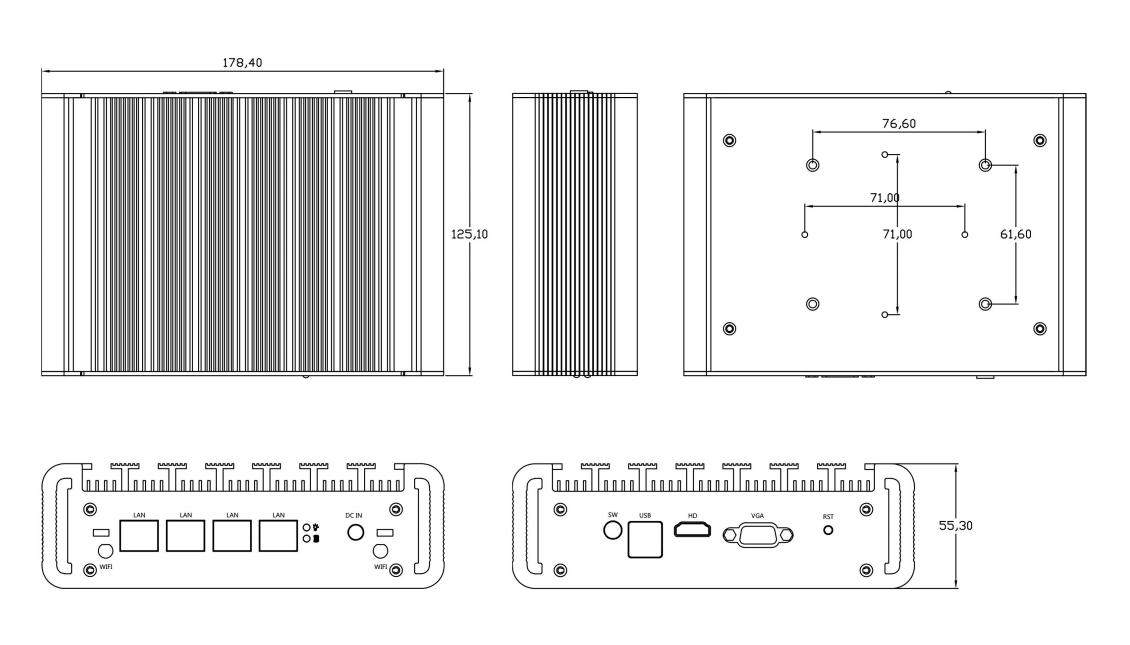

Dimension | 177mm * 125mm * 55mm |
Weight | Net 1.3kg, Gross 2.0kg |
Mounting | Wall mouting and VESA |
Package Content | |
Standard | 1 * Mini PC,1 * Power Adapter,1 * Power Cord,1 * User Manual |
