H6 Series Core i3 i5 i7 Industrial Fanless Mini PC,Dual HDMI,DP,RS232/485 COM SIM 4G,GPIO
H6
-Support RS232/RS422/RS485 COM.
-One embedded SIM card slot onboard for 3G/4G Wi-Fi module.
-Support 2*HDMI+1*DP three display output synchronously.
-Support 1*14 Pin GPIO port, default 5 outputs (GPIO 0-4 Output), 5 inputs (GPIO 5-9 Input)
-AIl alloy chassis, compact structure, light weight, flexible installation
-Widespread applications such as office, school, bank, supermarket, service center, hospital, POS, HTPC, CCTV, etc.
-One embedded SIM card slot onboard for 3G/4G Wi-Fi module.
-Support 2*HDMI+1*DP three display output synchronously.
-Support 1*14 Pin GPIO port, default 5 outputs (GPIO 0-4 Output), 5 inputs (GPIO 5-9 Input)
-AIl alloy chassis, compact structure, light weight, flexible installation
-Widespread applications such as office, school, bank, supermarket, service center, hospital, POS, HTPC, CCTV, etc.
CPU:
Intel Core i3-10110U
Intel Core i5 8260U
Intel Core i5 10210U
Intel Core i7 10510U 10810U
Memory:
64G DDR4
32G DDR4
16G DDR4
8G DDR4
No RAM
Storage SSD:
1TB SSD
512G SSD
256G SSD
128G SSD
No SSD
Wireless Kit:
No Wireless Kit
Dual Band WiFi with Bluetooth 4.0
3G/4G Module
Operating System(Os):
Debian
Ubuntu
Linux
Storage HDD:
2TB HDD
1TB HDD
NO HDD
Quantity:
Download directory
Download directory

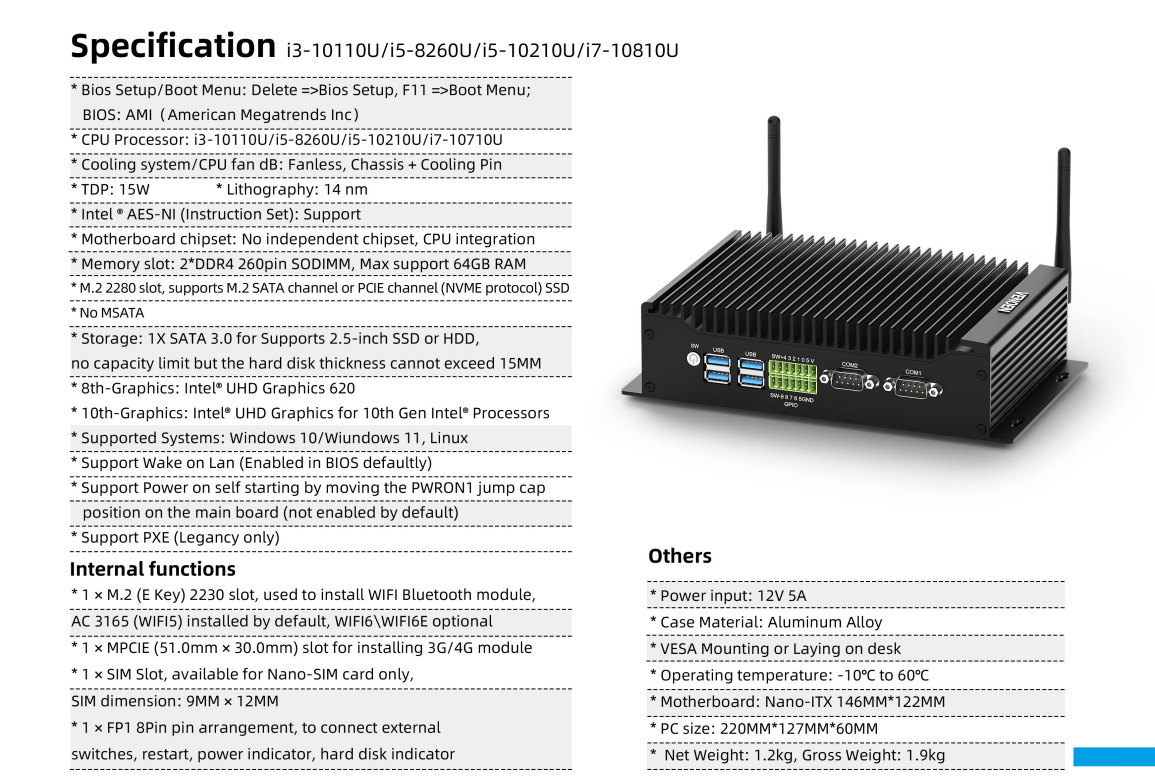

| Basic informations: | |
| CPU | Intel Core i3-8140U (4M Cache, 2 Cores 4 Threads, Base Frequency 2.10 GHz Turbo Frequency 3.90 GHz) Intel Core i5-8265U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.90 GHz) Intel Core i5-10210U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 4.20 GHz) Intel Core i7-10510U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.90 GHz) Intel Core i7-10810U (12M Cache, 6 Cores 12 Threads, Base Frequency 1.10 GHz Turbo Frequency 4.90 GHz) |
| TDP | 15W |
| CPU Lithography | 14 nm |
| Memory Specifications | |
| Max Memory Size | 64GB |
| Memory Types | 260 pin DDR4 SO-DIMMs |
| Memory Channels | Dual Channels |
| ECC Memory | Don't support |
| Storage Specification | |
| m.2 SSD | 1 x M.2 SATA or 1 x M.2 2280 NVME |
| SATA | 1 x SATA3.0 for 2*2.5 inch HDD/SSD |
| mSATA | No mSATA slot |
| Graphics | |
| Processor Graphics | Intel UHD Graphics |
| HDMI | 2 x HDMI 2.0 (4K) |
| DP Port | 1 x DP |
| Power Specification | |
| Power Adapter | 12V Power Input, supply 12V 5A power adapter within the package |
| Auto Power On | Support Auto Power On Function |

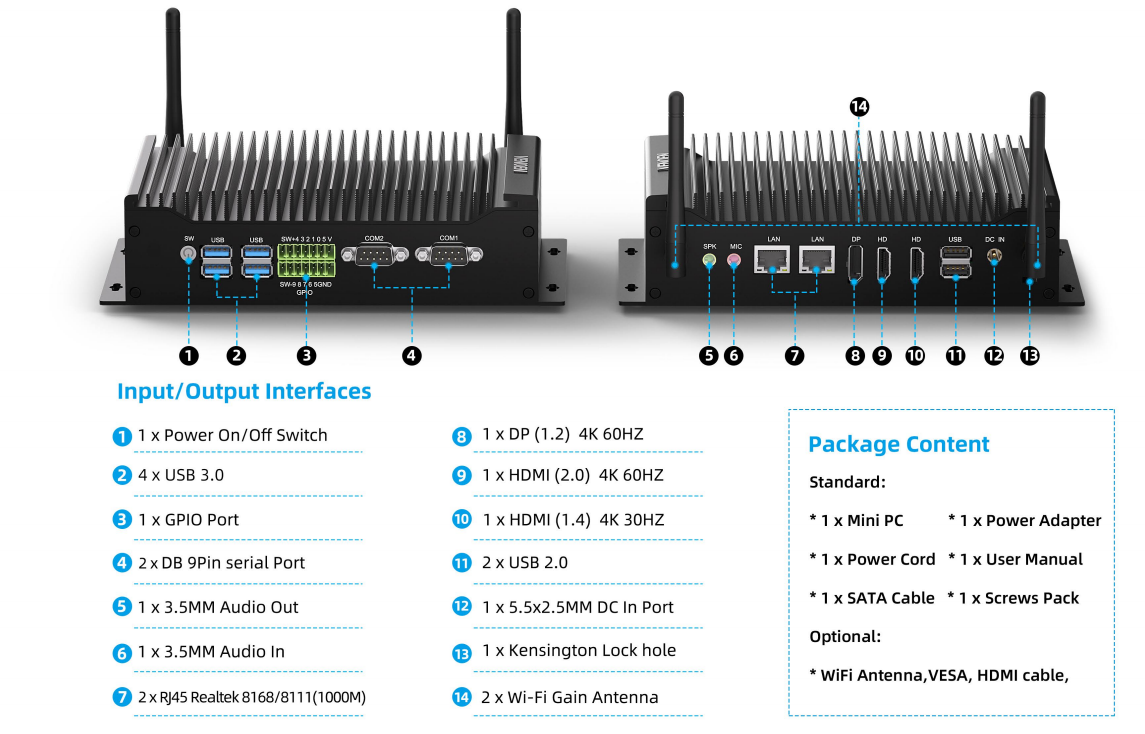

| In & Out interfaces | |
| USB Port | 4 x USB 3.0 port, 2 x USB 2.0 port |
| Audio | 3.5mm 1 Jack, MIC in/ Line out |
| Video | HDMI+HDMI+DP, support 3 Synchronized displays |
| Power Input | 5.5mm 12V In |
| Lan Port | 2 x Intel-I210/I211 Gigabit RJ45 Lan |
| Com Port | 2 x RS232 Com port |
| Others | |
| System | Support Windows10/11, Linux |
| Case Material | Aluminium Alloy |

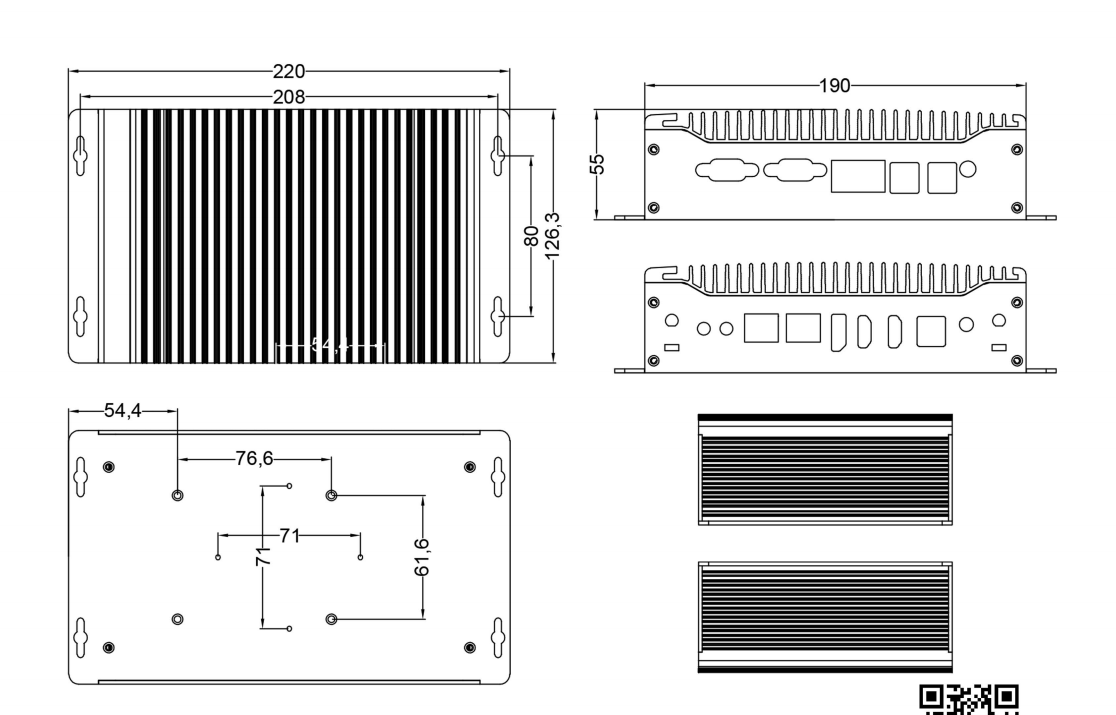

| Dimension | Mini PC size 205 x 126hello x 57mm |
| Weight | Gross weight 2.5 kg |
