fanless mini pc windows

K4 Series Fanless IPC, Dual Lan, SIM card Slot RS485 COM LVDS Industrial Mini Computer

K4
【CPU & GPU & OS】: intel Core i5 4200U/Celeron J4125 Quad Core processor, support windows 7/10 and all kinds linux ubutun.
【DDR3L Memory & Storage】: This fanless mini pc equipped with dual DDR3L SODIMM memory slots, up to Max 16GB RAM, and support 1*MSATA 3.0 SSD+1*2.5 SATA 3.0 HDD/SSD dual hard disks together.
【Network & Dual band Wifi】: Dual band wifi (2.4G & 5.0G) and 2 Intel I211/I210 Gigabit Ethernet LAN to operate the Internet, streaming and audio perfectly.External Bluetooth 4.2 Dongle,support connections from multiple wireless devices.
【Dual HD 4K Display】: 1*HDMI+1*VGA Port easily connecting two monitors, simplify and double your work efficiency. Easy to enjoy Web surfing and hd 4K video playback, or connect to your projector as a home theatre, enjoy a variety of entertainment.

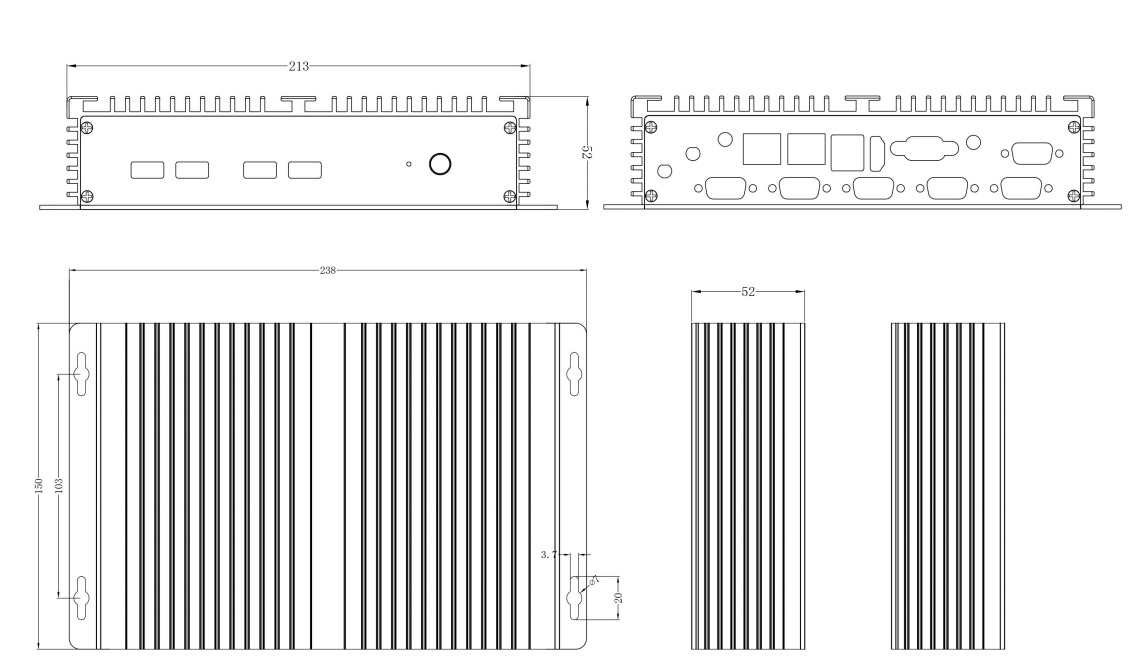

【I/O & Key Features】: Mini Size:9.41 x 5.91 x 1.77 inches, Rich interface : 2x LAN, 2x USB 3.0, 2x USB 2.0, 1x HDMI, 1xVGA,6xRS232 COM,1x spk, 1x Mic, 1xbuild-in 3G/4G SIM card slot,1xbuild-in LVDS port. Fanless performer that keeps noise levels down, even you can put it in your bedroom.
CPU:
Intel Celeron J4125
Intel Core i7-8550U
Intel Core i5-8250U
Intel Core i7-4500U
Intel Core i5-4200U
Memory:
16G DDR3L
8G DDR3L
4G DDR3L
8G DDR4 (J4125)
4G DDR4 (J4125)
Storage SSD:
1TB SSD
512G SSD
256G SSD
128G SSD
64G SSD
32G SSD
No SSD
Storage HDD:
4TB HDD
2TB HDD
1TB HDD
NO HDD
Quantity:
Contact Now
add to cart
Download directory
intel_2230proset_wireless_17_1_1_1409_01_win8-10_64bit
intel_mei_1015_10_64_1017
Wired_driver_27.0_x64
Download directory
intel_2230proset_wireless_17_1_1_1409_01_win8-10_64bit
intel_mei_1015_10_64_1017
Wired_driver_27.0_x64

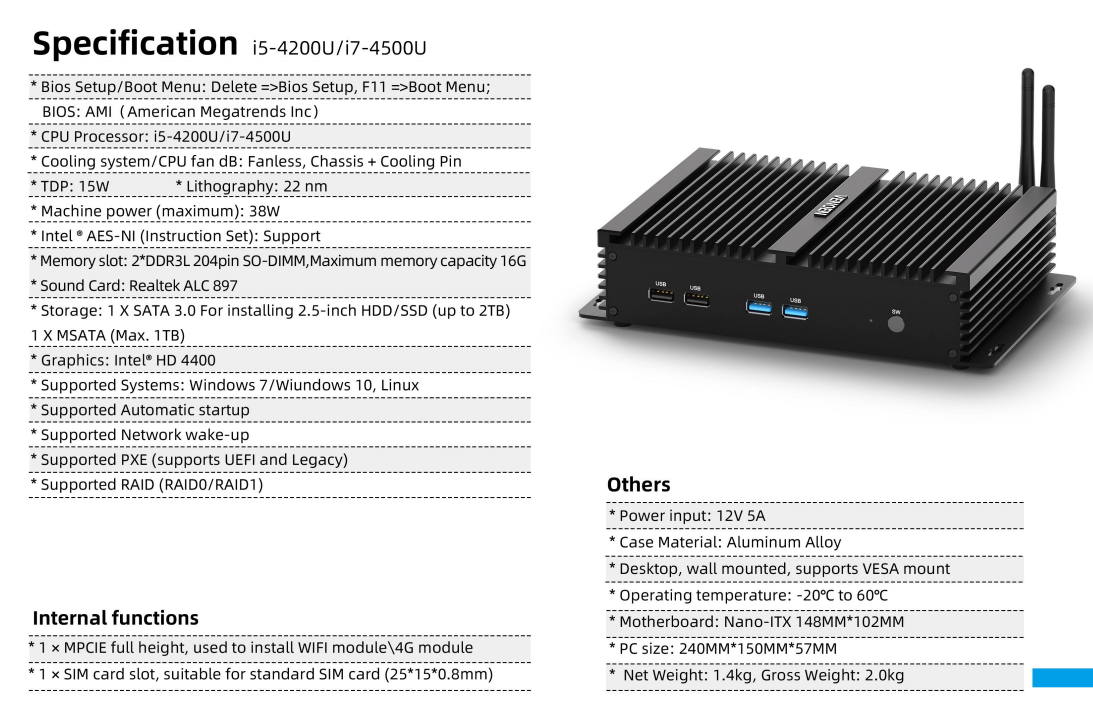

 Processor
 CPU&GPU Intel Core i5 4200U(3M Cache, 1.6GHz), Dual core 4 thread with Intel HD 4400 Graphics
 RAM Support 2G / 4G / 8GB/16GB(2*8GB)
 Dual memory slots DDR3L-1333/1600MHz
 LPDDR3-1333/1600MHz SO-DIMM Notebook memory
 Storage 1*mSATA 3.0 SSD+1*SATA III 2.5"HDD/SSD
 Support 1*mSATA SSD+1*2.5'' Hard disk together
 BIOS AMI BIOS, ACPI supported, support call-on function automatically, Wake-on-LAN

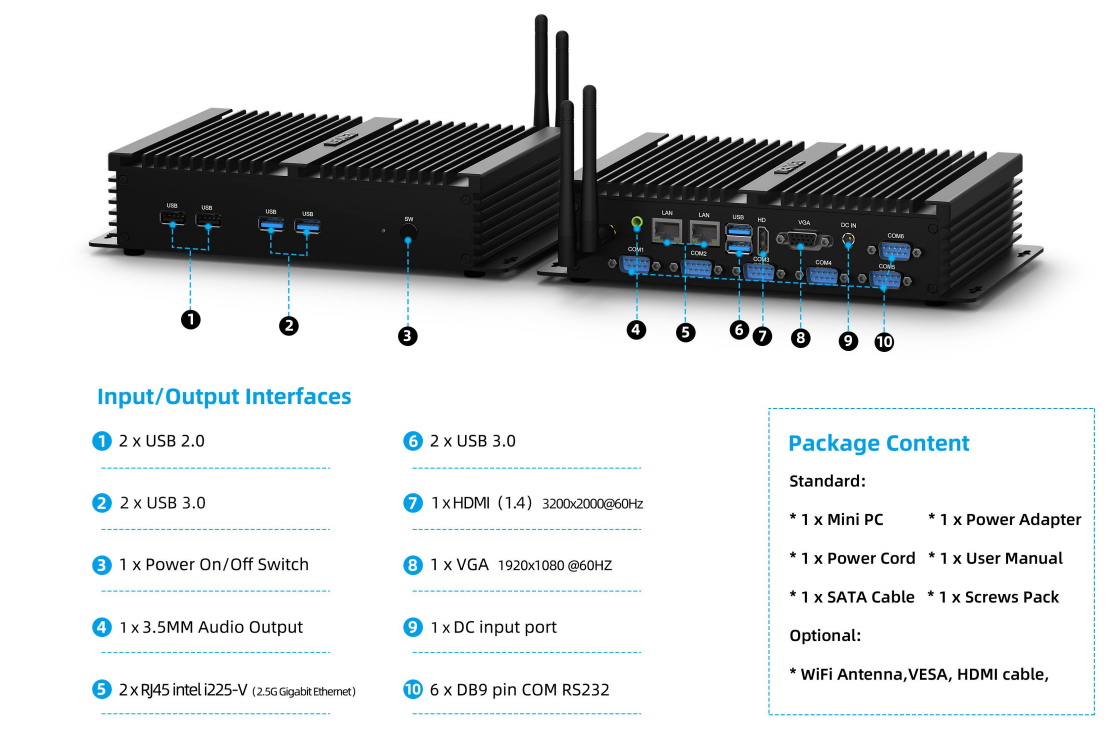

 I/O Mic;Speaker;2*USB 3.0 port;
 2*USB 2.0 port;
 2*RJ45 Gigabit LAN Port;
 1HD;1 VGA port ;1 DC12V In;
 6*RS 232 COM ports,
 LVDS on  the mainboard
 Operating System Win7/8/10, Linux all Compatible
 BIOS AMI BIOS, ACPI supported, support call-on fuction, automatically Wake-on-LAN
 Audio Cards intel High Definition Audio Controller
 Chipset Haswell-ULT - Lynx Point-LP
 Wireless 300MB dual band Wifi module(Built-in) with 2 Antennas
 Ethernet 10/100/1000 BaseT LAN
 Network Card 2*intel 82574L Gigabit ethernet NIC
 Input DC100-240V AC/50-60Hz
 Output DC 12V~3A/5A
 Operating Temperature 0/70 Centigrade (32F~140F)
 Storage Temperature -20/+85 Centigrade
 Relative Humidity 0%~90% (non-condensing)
 Energy-saving Support Energy-saving technology, Speedstep
 64 bit computing Support 64 bit computing
 Virtualization Support Virtualization technology
 Hyper-threading Support Hyper-Threading
 Consumption 15W~25W
 Material Brushed Aluminum Alloy
 Weight NW:1.8Kg   GW:2.5Kg
 Package Content 1 Mini PC; 1  power adapter(Power acord according to the buyer's country); 2  Antennas, SATA cables, 1 HD cable
 Warranty 30 days free defective replacement and 2 years free repair

Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.

Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.

Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.

Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.

Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).

Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not
support XP.

Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
