Intel celeronJ6412,intel N-Series N95/N100 Fanless Mini PC, Dual HDMI +DP, Windows 10
H3D
CPU
Memory
Storage SSD
Operating System(Os)
Storage HDD
Quantity

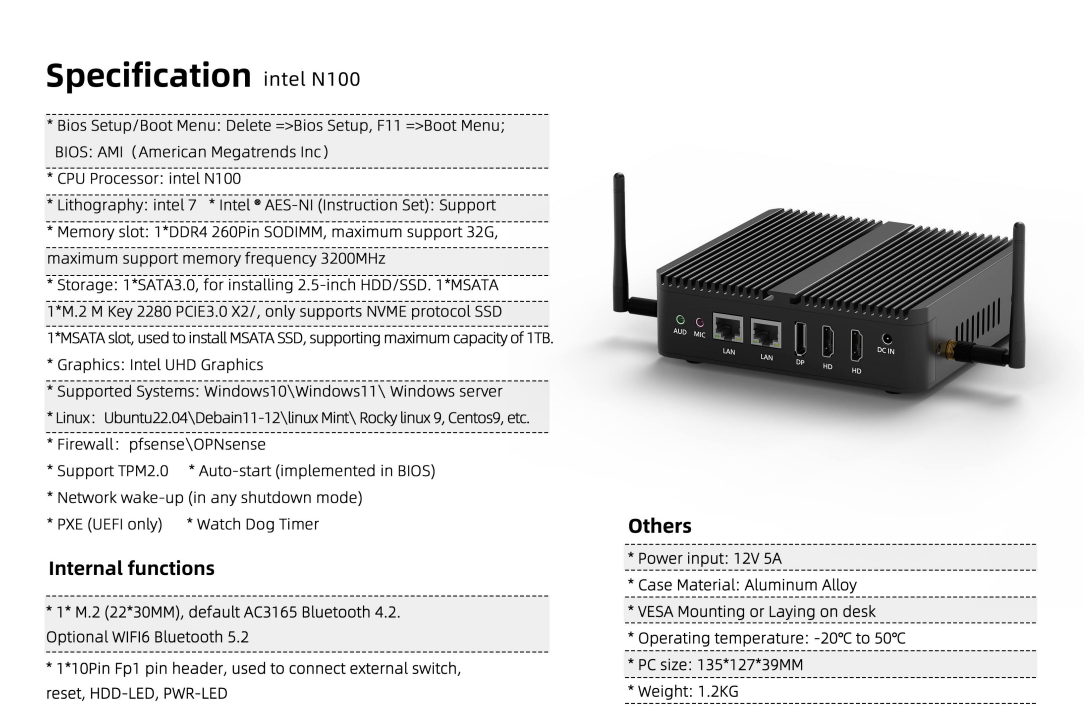

| Basic Information: | |
| CPU | Intel celeron-J6412,intel N-Series N95/N100 |
| TDP | 10W |
| Level 2 Cache | 4 MB, 16-Way, 64 byte lines |
| BIOS | American Megatrends Inc. |
| Motherboard Size | 12 x 12 cm |
| PXE | YES |
| Chipset | Intel Gemini Lake |
| Memory | 1 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB DDR4/LPDDR4 upto 2400 MT/s |
| OS | Windows 10/WES 10/Linux |
| Watchdog | Watch Dog Time 256 Levels, programmable |
| Audio | Intel High Definition Audio Controller |
| Network | 2 x RTL8168/8111/8112 Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN |
| Video | Intel UHD Graphics 600 |

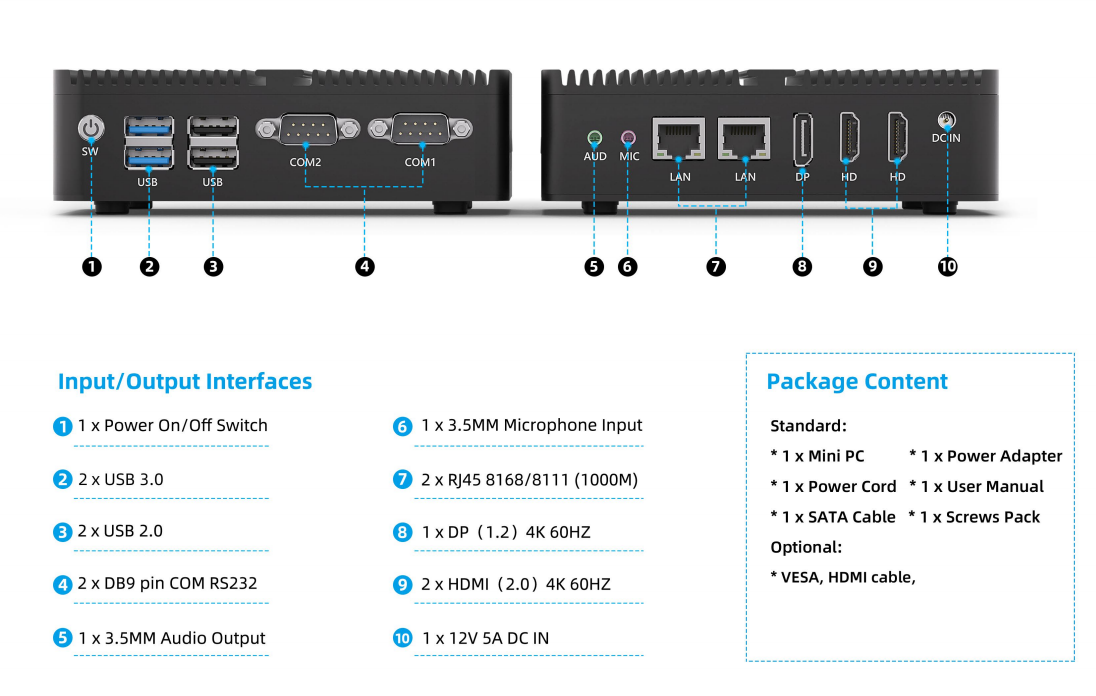

| Input/output port | |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x 12V DC In |
| LED | 2 x LED |
| USB | 2 x USB3.0， 2 x USB2.0 |
| Display | 1 x DP, 2 x HD |
| LAN | 2*GbE R45 Realtek 8111H |
| Audio | 1 x Audio(MIC&SPK) |
| COM | 2 x D89 COM |
| Storage | |
| MSATA | 1x MSATA SSD |
| M.2 | 1x 2.5 inch HDD or ssD |
| SATA | 1x M.2 2280NVME |
| Wi-Fi | |
| Module | 1 x mini PCIE-half port for Wi-Fi module |
| Antenna | 2 x inner RF cables and 2 x external antennas |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC 12V/5A |
| Temperature | -20℃ to +60℃ |
| Relative Humidity | 10%-90% relative humidity |
| Product Dimension & Details | |
| Function | Auto Power On, RTC, WOL, PXE |

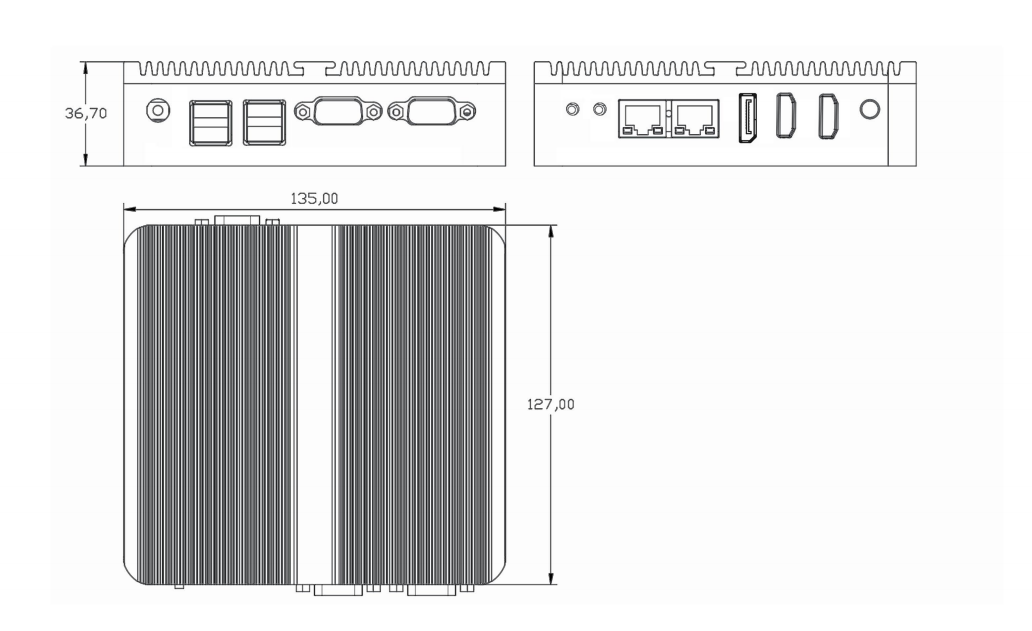

| Size | 135*127*38.7mm |
| Weight | Net 1kg, Gross 1.7kg |
| Shell | Black color aluminum alloy |
| Cooling Mode | Fanless |
| Package Content | |
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xVESA Mount |
| Optional | Wi-Fi antennas, 1xHDMI cable, 1xUser Manual |
