H7-12Th Gen Fanless mini pc 4 * USB3.0+4 * USB2.0 2 * RS232 DB9 COM

H7-12th gen

CPU:

Core i5 1245U/1235U

Intel Core i3 1215U

Memory:

32G DDR5

16G DDR5

8G DDR5

Storage SSD:

1TB SSD

512G SSD

256G SSD

128G SSD

Operating System(Os):

Linux

Windows 11

Windows 10

Quantity:

Contact Now

add to cart

Download directory

BT_20400_64_Win10

realtek_bt40_148873010_73

WiFi-22.250.1-Driver64-Win10-Win11

Download directory

BT_20400_64_Win10

realtek_bt40_148873010_73

WiFi-22.250.1-Driver64-Win10-Win11

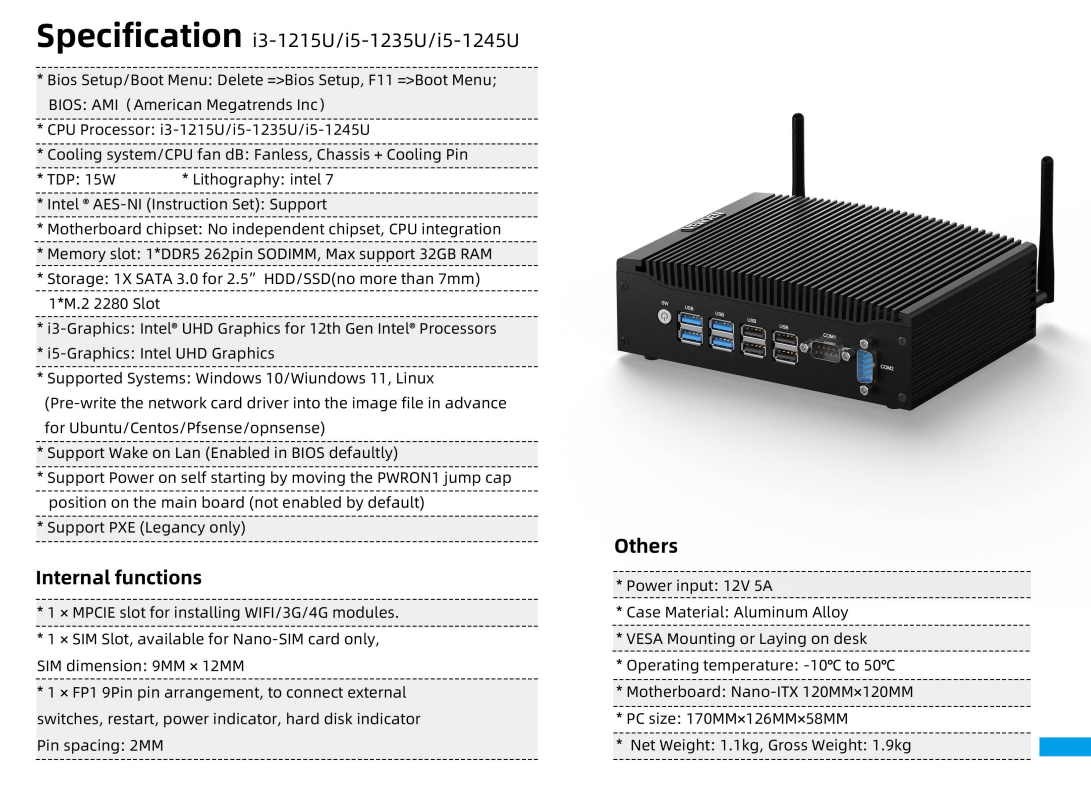

Basic information
CPU	12th：Intel Core i3-1215U 6 Cores/8 Threads, Base Frequency: 3.30GHz(Max 4.40GHz)

	Intel Core i5-1235U/1245U 10 Cores/8 Threads, Base Frequency: 3.30GHz(Max 4.40GHz)
Memory	12th：1 * DDR5 slotSO-DIMM Socket max 32G
Graphics	Intel® UHD Graphics for 12th Gen Intel® Processors(i3-1215U)

	Intel® Iris® Xe Graphics eligible(i5-1235U)
LAN	2 * GbE RJ45 Realtek 8111H
Expansion Options	1 * M.2 2280(only support NVME)

	1 * SATA3.0（2.5 inch SSD/HDD）
WiFi
Module	MINI Pcie WiFi slot;

	Support Wifi module + Bluetooth module
Antenna	2 * external antennas

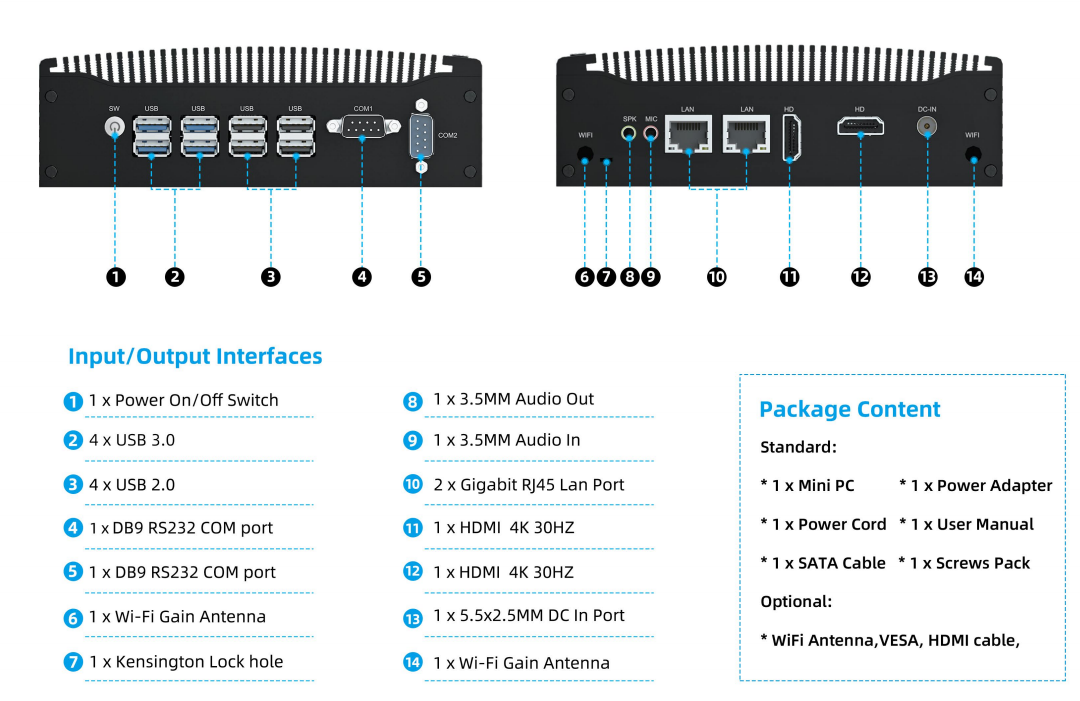

Input/output Ports
Rear I/O	4 * USB3.0+4 * USB2.0（Type-A）
	2 * RS232 DB9 COM port
	2 * HDMI （or HDMI+VGA）
	1 * MIC, 1 * SPK
	1 * 3pin PWRON1 row of pins used to turn

	on/off the power self-start function
	1 * FP1 9Pin row, used to connect the external switch, restart, power indicator, hard disk indicator, pin spacing: 1.57MM
	1 * Power Button
	2 * Wi-Fi antennas
Motherboard interface	1 * MPCIE slot for installing WIFI/3G/4G module, note: WIFI, 3G, 4G module can only choose 1 of 2
Motherboard interface	1 * SIM slot, suitable for Nano-SIM card, SIM size: 9MM*12MM
Others
Expected Life Cycle	5 Years
Warranty	3 years included; 4 or 5 year options available
Power	12V 6A External Power Adapter
Temperature	-20℃~70℃
Humidity	10%-90% relative humidity
OS	Windows 10/11, Linux, Ubuntu, Debian, Etc.
Other	Support Watch dog . Diskless boot

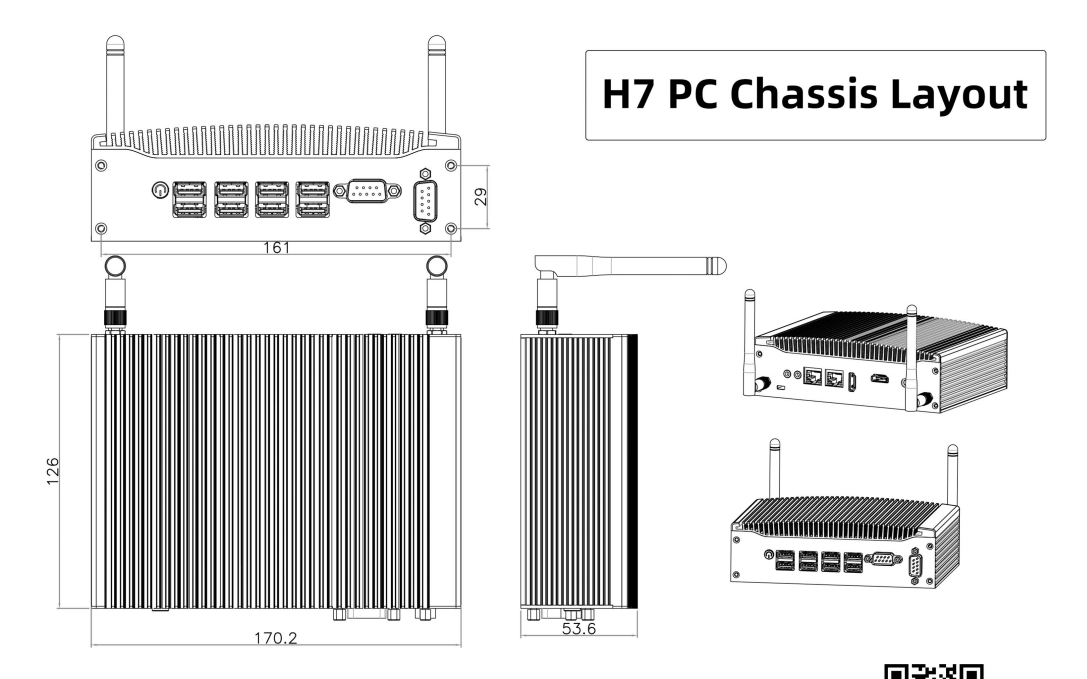

Mechanical
Material	Aluminum Alloy
Dimension	193.9 * 127 * 57.2 mm
Weight	Net 1.5kg, Gross 1.8kg
Mounting	Wall mouting and VESA and DIN RAIL
Package Content
Standard	1 * Mini PC,1 * Power Adapter,1 * Power Cord,1 * User Manual
