H4T-5G Series Core i5 Industrial Fanless Mini PC,Dual HDMI,EDP,Type-C,RS232 COM,5G/4G slot,GPIO,DB 9pin Canbus
H4T-5G
-Support 2 x 6pin GPIO.
-Support 1 x Nano SIM slot+4 x USB 3.0, 4 x USB 2.0+1 x HDMI , 1 x Type-C ,1 x EDP.
-Support 2 x RJ45 Giga LAN.
-Support 5G/4G slot.
-Widespread applications such as office, school, bank, supermarket, service center, hospital, POS, HTPC, CCTV, etc.
-Support 1 x Nano SIM slot+4 x USB 3.0, 4 x USB 2.0+1 x HDMI , 1 x Type-C ,1 x EDP.
-Support 2 x RJ45 Giga LAN.
-Support 5G/4G slot.
-Widespread applications such as office, school, bank, supermarket, service center, hospital, POS, HTPC, CCTV, etc.
CPU
Memory
Storage SSD
Operating System(Os)
Quantity

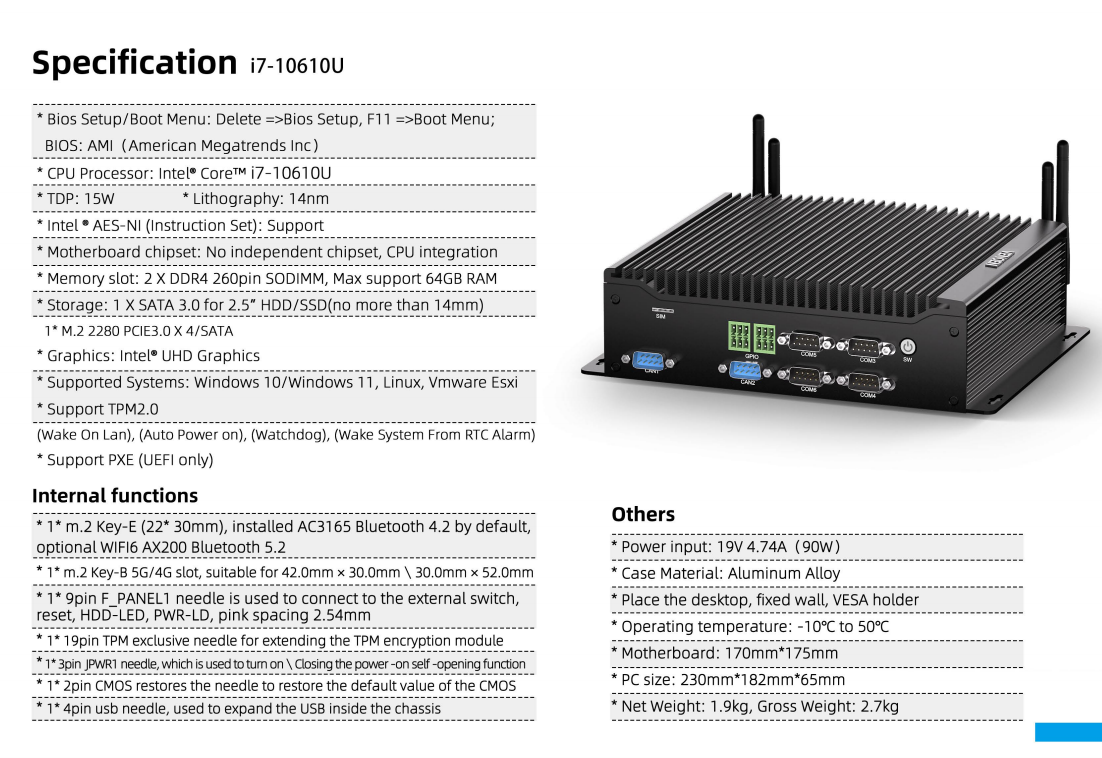

| Basic Information: | |
| CPU | Intel Core i5-10210U/10310U/ i7-10610U (Random shipment) |
| TDP | 15W |
| Memory | 2 x DDR4 SODIMM Slot, up to 64GB Dual Channel, DDR4 260pin |
| OS | Windows 11/10/Linux |
| Audio | Realtek ALC 897 |
| Network | intel I210/211 （1000M） |

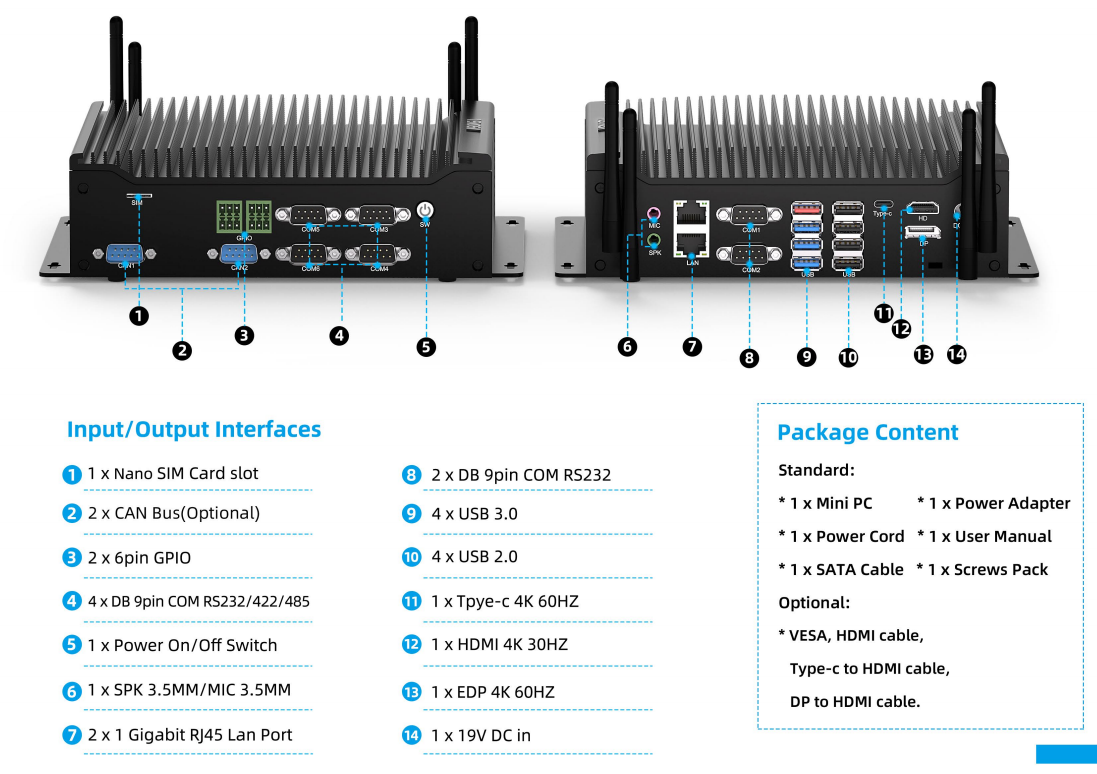

| Input/output port | |
| Switch | 1 x Power On/Off Switch |
| USB | 4 x USB 3.0, 4 x USB 2.0 |
| Display | 1 x HDMI , 1 x Type-C ,1 x EDP |
| LAN | 2 x RJ45 Giga LAN |
| COM | 6 x Com RS232(COM3/4/5/6 supports RS232/RS422/RS485) |
| DB | 2 x DB 9pin Canbus(optional) |
| SIM | 1 x Nano SIM slot |
| Storage | |
| M.2 | 1 * M.2 2280 PCIE3.0 X4/SATA, supports NVME/SATA protocol SSD, up to 2T. 1 x SATA3.0 for installing 2.5 inch HDD/SSD,up to 6GB. |
| Wi-Fi | |
| Module | 1 x M.2 E key (22 x 30MM) |
| Antenna | 1*MPCIE total height (51.0mm × 30.0mm) for canbus |
| M.2 KEY-B | 5G/4G slot, suitable for 42.0mm × 30.0mm30.0mm × 52.0mm |
| Power and Working Environment | |
| Input | 19V 4.74A（90W） |
| Operating Temperature | -10/55 Centigrade |
| Relative Humidity | 90%(non-condensing) |
| Product Dimension & Details | |

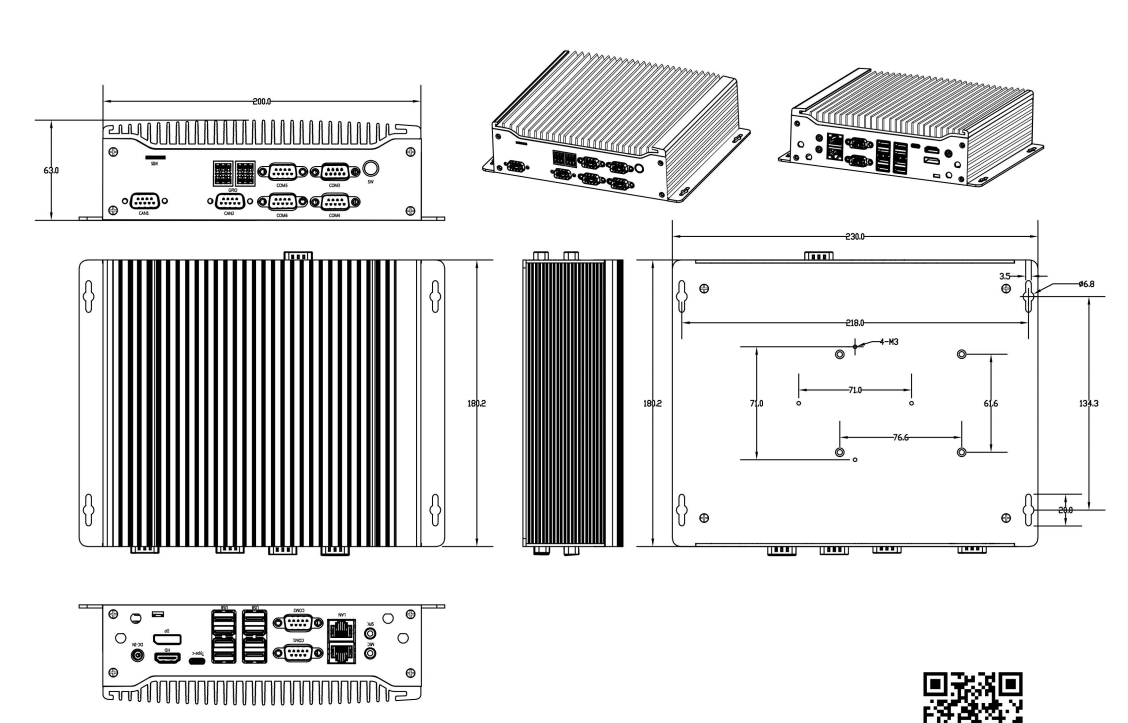

| Size | 230x182x65mm |
| Weight | Net 1.9kg |
| Shell | Aluminum Alloy |
| Cooling Mode | Power Cooling Fan |
| Package Content | |
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xUser Manual |
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not
support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not
support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
