Intel 13th Gen CPU I7 13700H NVIDIA RTX3050 Gaming Mini PC i5 12450H 13500H Powerful NVME DDR4 Desktop Computer 4K 3 Display
GT
CPU
Memory
Storage SSD
Quantity

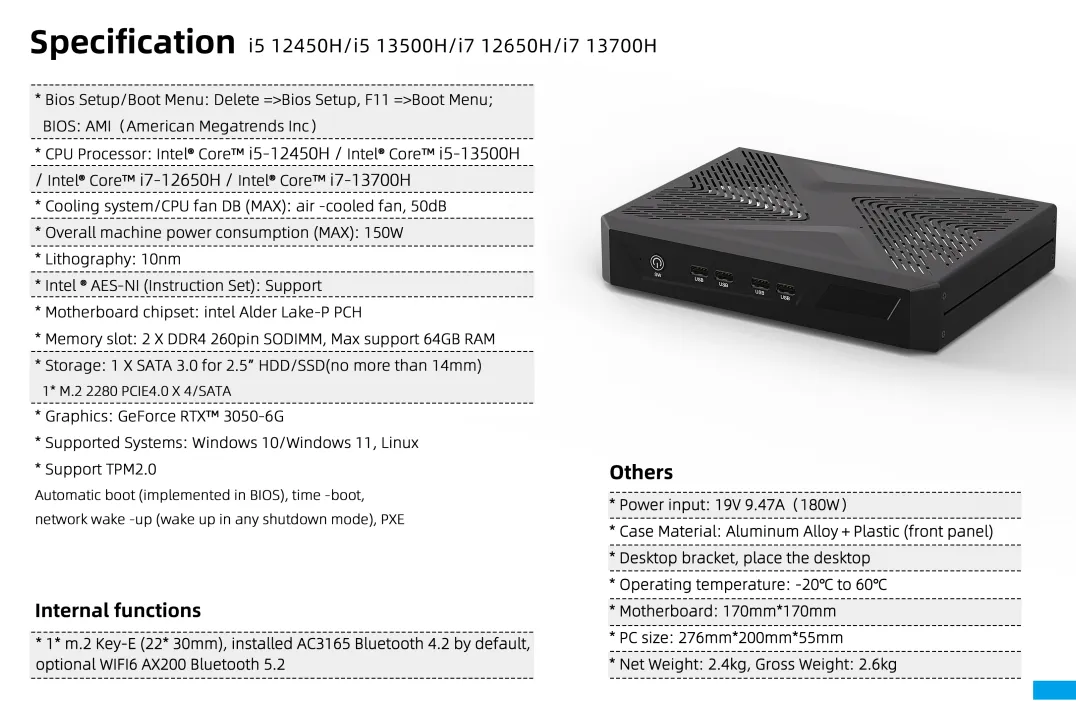

| CPUs | Intel Core i7-10870H 8 cores 16 threads 2.2GHz up to 5.0GHz 18MB cache Intel® UHD Graphics |
| Intel Core i5-12450H 10 cores 12 threads 3.3GHz up to 4.4GHz 12MB cache Intel® UHD Graphics | |
| Intel Core i5-13500H 12 cores 16 threads 3.5GHz up to 4.7GHz 18MB cache Intel® Iris® Xe Graphics | |
| Intel Core i7-13700H 14 cores 20 threads 3.7GHz up to 5.0GHz 24MB cache Intel® Iris® Xe Graphics | |
| Memory Types | 2 x SO-DIMM DDR4 slot, up to 64GB Dual Channel, DDR4-3200/2666/2400/2133MHz |
| Hard Disk | 1 x M.2 2280 slot for NVME/SATA3.0 |
| 1 x SATA 3.0 slot for 2.5inch SSD/HDD | |
| Graphics | i7-10870H/i5-12450H：Intel® UHD Graphics+NVIDIA GeForce GTX 3050 6GB GDDR5 i5-13500H/i7-13700H：Intel® Iris® Xe Graphics+NVIDIA GeForce GTX 3050 6GB GDDR5 |
| Audio Chip | 1 x 3.5mm MIC in & SPK out |
| Onboard HD audio chip | |

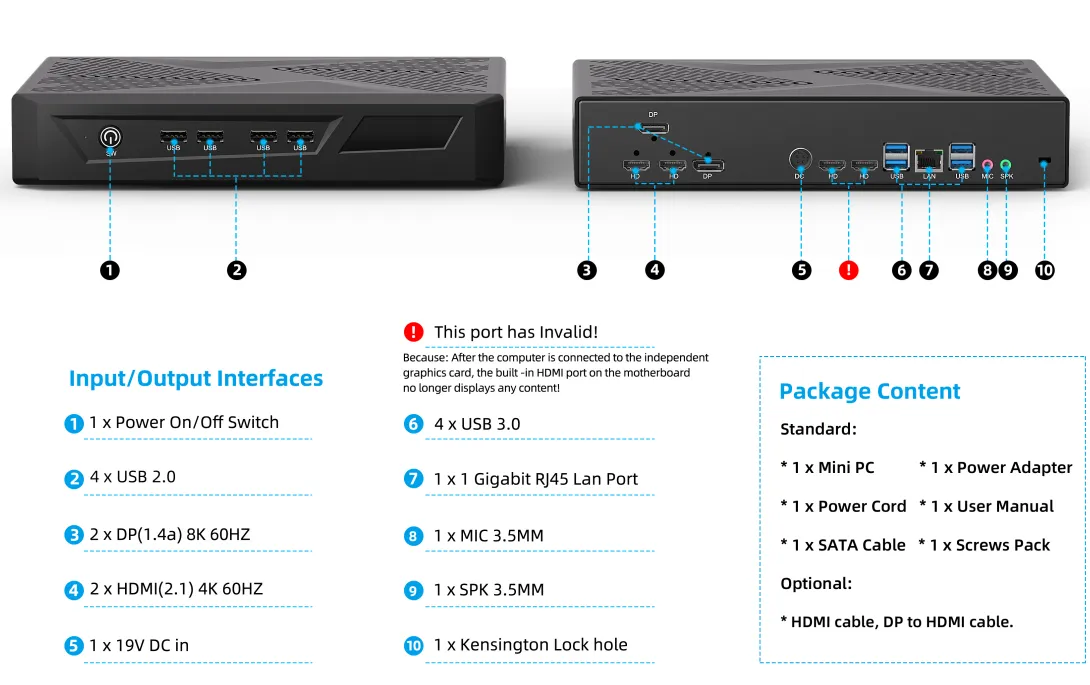

| Front I/O | 4 x USB 2.0(Type-A) |
| 1 x On/Off Switch | |
| Rear I/O | 2 x DP (1.4a) 8K 60HZ |
| 2 x HDMI (2.1) 4K 120HZ | |
| 4 x USB3.0(Type-A) | |
| 1 x DC 19V/9.47A | |
| 1 x 3.5mm MIC in & SPK out | |
| 1 x Kensington lock hole, used for connecting Kensington locks. | |
| 1 x RJ45 Realtek RTL 8168/8111 Gigabti | |
| Internal I/O | 1 x JAMP pins support 8-ohm 5-watt speaker output (power amplifier) (4Pin, 1*4Pin, 2.0mm) |
| 1 x F_AUDIO pin Standard audio pin (9Pin, 2*5Pin, 2.0mm) | |
| 1 x Built-in LVDS port (not available on this model, usually used to connect the LVDS screen of the all-in-one machine) | |
| 1 x PANEL pins (Switch, power light, hard disk light, restart pins 9 pins, 2*5 pins, 2.54mm) | |
| 1 x AT_ATX1 pins (Supporting hardware control power-on and power-on (3Pin, 1*3Pin, 2.0mm)) | |
| 1 x JCMOS pin motherboard reset, discharge pin 3Pin, 1*3Pin, 2.0mm | |
| 1 x M.2 (22*30MM), with AC3165 Bluetooth 4.2 installed by default. Optional WIFI6/ WIFI6E Bluetooth 5.2 | |
| Power Adapter | DC 19V 9.47A(90W) |
| OS Support | Windows 10 |
| Windows 11 | |
| Linux | |
| Features | Support AUTO POWER ON,Wake On LAN,PXE,Resume By Alarm |
| Support TPM2.0 | |
| Working Temperature | -10℃ TO ﹢60℃ |
| Storage Temperature | ﹣10℃ TO ﹢60℃, 30%~90% non-condensing |

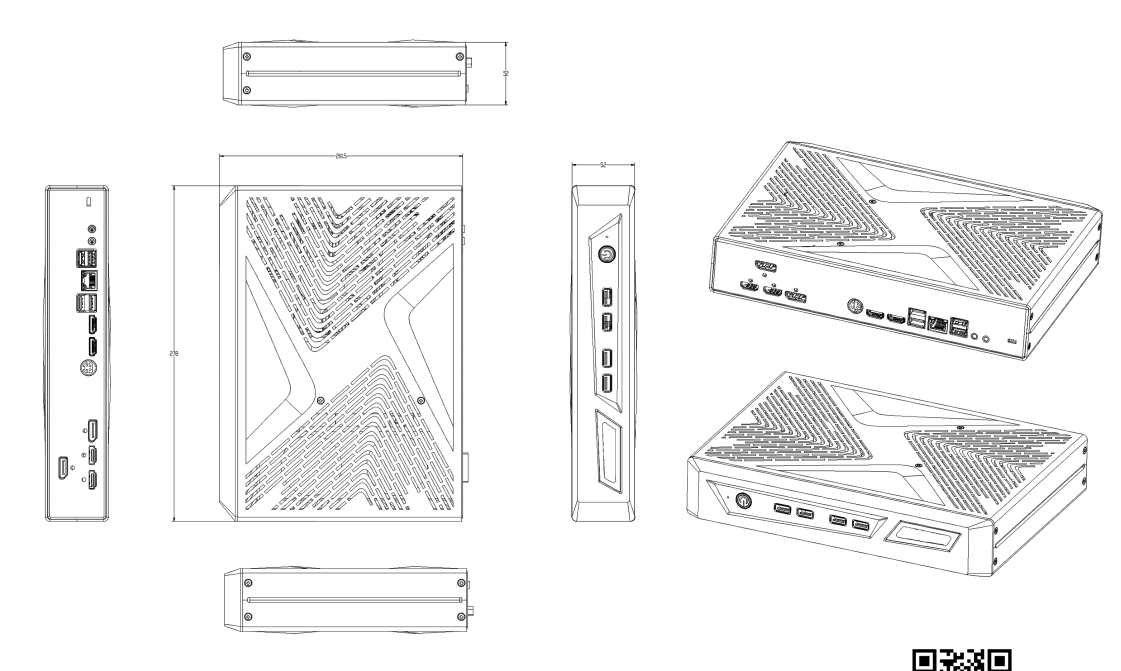

| Dimension | 276 x 200 x 55mm |
| Construction | Fan-cooled chassis |
| Package | 1 x Mini PC |
| 1 x AC adapter | |
| 1 x Power cord | |
| 1 x SATA cable | |
| 1 x User guide |
