Win 11 I7 11700 4USB 3.0 M.2 Key SSD HD Business Office Computer Host Mini PC Aluminum Alloy Repair 8 Core Office Tool
Core i7 11700: 14nm CPU Rocket lake 2.5Ghz-4.9GHz 8 core 16 thread Intel UHD Graphics 750 350MHz-1.30GHz
Core i9 11900: 14nm CPU Rocket lake 2.5Ghz-4.9GHz 8 core 16 thread Intel UHD Graphics 750 350MHz-1.30GHz
Basic information | |
CPU | Intel i5-11400 6 Cores/12 Threads, Base Frequency:2.60GHz(Max 4.40GHz) Intel i7-11700 8 Cores/16 Threads, Base Frequency:2.50GHz(Max 4.90GHz) Intel i9-11900 8 Cores/16 Threads, Base Frequency:2.50GHz(Max 5.20GHz) |
Memory | 2 * DDR4 260Pin SODIMMs support a maximum of 64 GB and a maximum memory frequency of 3200MHz |
Graphics | 11400: intel UHD Graphics 730 11700/11900: intel UHD Graphics 750 |
LAN | 1 * RJ45 Realtek RTL 8168/8111 （1000M） |
Expansion Options | 1 * M.2 M Key/2242/2260/2280 PCIE3.0 x 4/SATA, supports NVME/SATA SSDS. 2 * SATA3.0, used to install 2.5-inch HDD/SSD. |
WiFi | |
Module | 1 * M.2 NGFF 2230 slot for Wi-Fi module, support 802.11B/G & 802.11B/G/N/AC 1 * BT 2-in-1 WIFI & BT combo card 2 * inner RF cables and without external antenna |
Input/output Ports | |

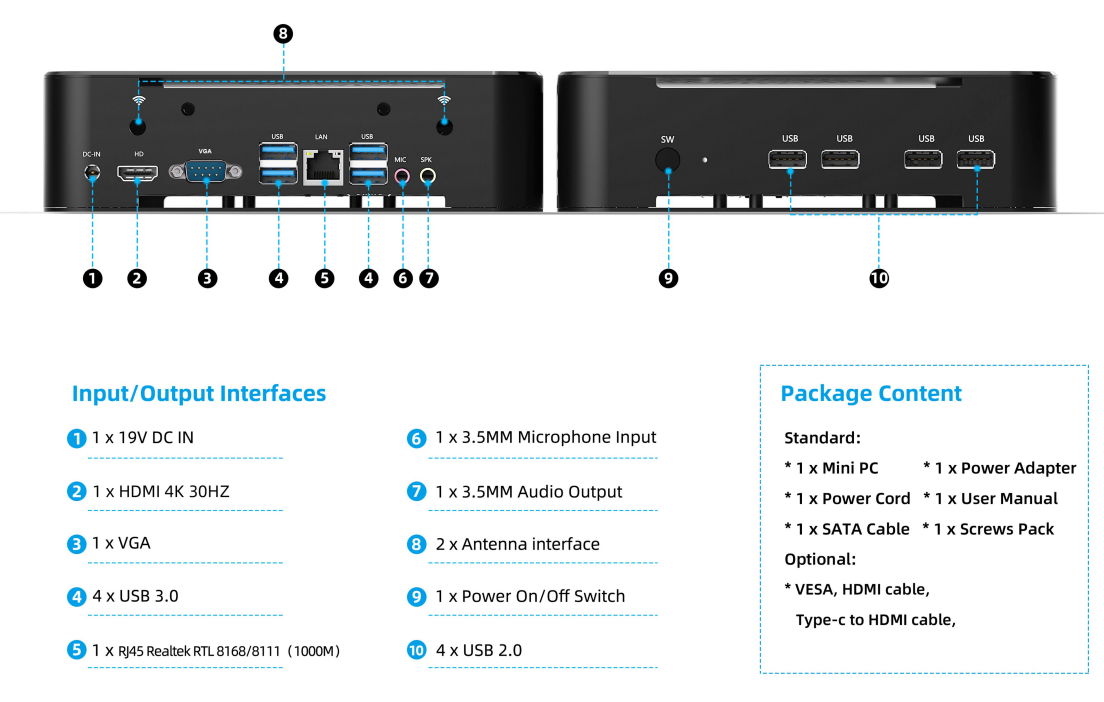

Rear I/O | 4 * USB2.0+4 * USB3.2(Type-A） |
1 * DC input port, applicable to 5.5 x 2.5MM DC ports | |
1 * DB 9Pin RS232 | |
1 * 3.5MM audio output, 1 * 3.5MM microphone input | |
1 * RJ45 Realtek RTL 8168/8111 （1000M） | |
2 * antenna interface, used to connect the external antenna of the WIFI module | |
（Plate type 1:）1 * HDMI (1.4) 4K 30HZ, 1*COM (RS232) This port does not support video output | |
（Plate type 2:）1 * HDMI（1.4） 4K 30HZ，1*VGA 1080P 60HZ | |
Others | |
Expected Life Cycle | 5 Years |
Warranty | 3 years included; 4 or 5 year options available |
Power | 19V 7.9A External Power Adapter |
Temperature | -20℃~60℃ |
Humidity | 10%-90% relative humidity |
OS | Windows 10/11, Linux, Ubuntu, Debian, Etc. |
Other | Support Watch dog . Diskless boot |
Mechanical | |
Material | Aluminum alloy |
Dimension | 196 * 196 * 60 MM |
Weight | Net 1.4kg, Gross 2.2kg |
Mounting | Wall mouting and VESA |
Package Content | |
Standard | 1 * Mini PC,1 * Power Adapter,1 * Power Cord,1 * User Manual |
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not
support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
