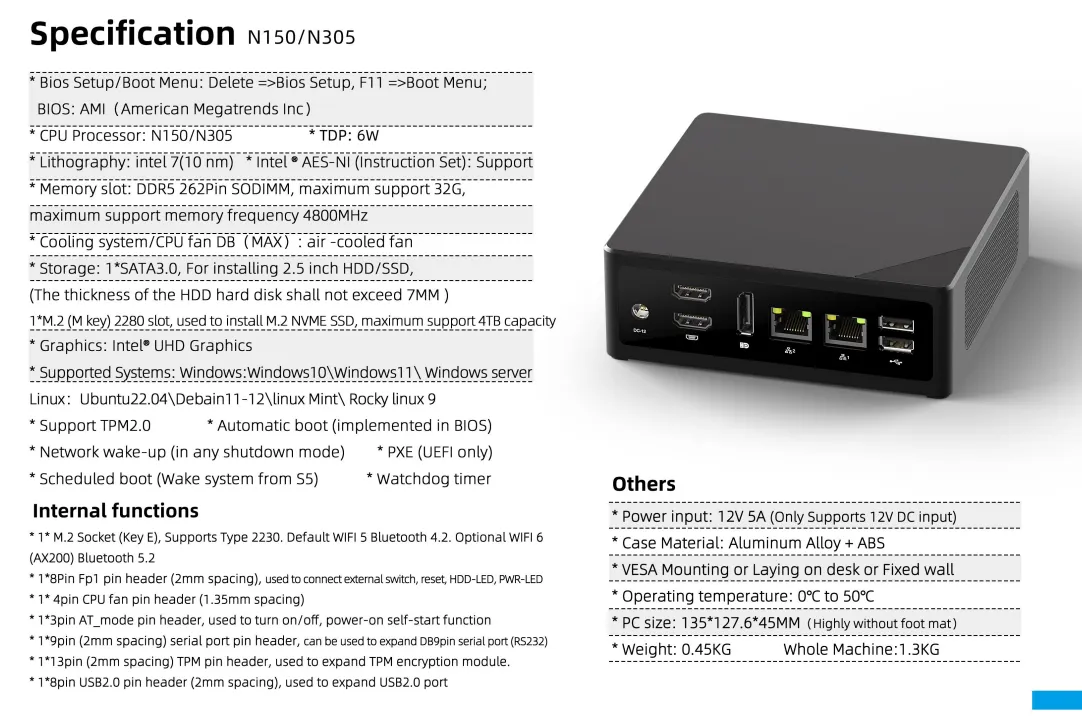

| CPUs | Intel N150 (4 cores 4 threads, base speed: 0.8GHz, maximum turbo frequency: 3.6GHz, cache: L1: 384KB) |
| Intel i3-N305 ((8 cores 8 threads, base speed: 1.8GHz, maximum turbo frequency: 3.8GHz) L1: 768KB) | |
| Memory Types | 1 x DDR5 262Pin SODIMM, maximum support 32G. Supported memory frequency (speed): 4800Mhz |
| Hard Disk | 1 x M.2 (M key) 2280 slot, used to install M.2 NVME SSD, supporting maximum capacity of 4TB. Note: This slot only supports NVME protocol SSD, channel type: PCIE 3.0 |
| 1 x SATA3.0, for installing 2.5-inch HDD/SSD. Note: The thickness of the HDD hard disk must not exceed 7MM | |
| Graphics | Intel® UHD Graphics |
| Audio Chip | Realtek ALC897 |
| Onboard HD audio chip | |

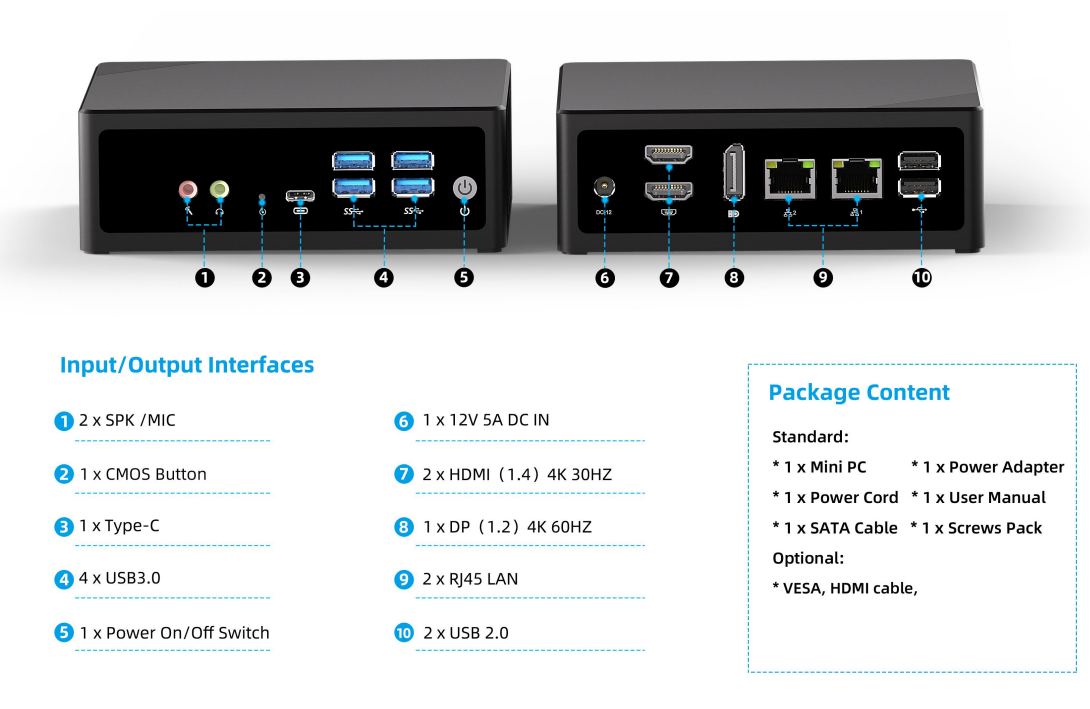

| Front I/O | 4 x USB3.0 (Type-A) |
| 1 x Type-C | |
| 1 x key recovery CMOS button | |
| 1 x Audio input/output (MIC/SPK) | |
| 1 x On/Off Switch | |
| Rear I/O | 1 x DC input port, suitable for 5.5*2.5MM DC interface |
| 2 x USB2.0 (Type-A) | |
| 2 x RJ45 interface, network card model: Realtek RTL8168/8111 (Gigbit ethernet) | |
| 2 x HDMI (1.4) 4K 30HZ | |
| 1 x DP (1.2) 4K 60HZ | |
| Internal I/O | 1 x M.2 Socket(Key E),Supports Type 2230. By default, WIFI5 and Bluetooth 4.2 are installed. Optional WIFI6 (AX200) and Bluetooth 5.2 are available |
| 1 x 8-pin Fp1 pin layout (2mm spacing), used for connecting external switches, resets, HDD-leds, and PWR-leds | |
| 1 x 4-pin SPK pin header (2.54mm pitch), for expanding the built-in speaker. Note: Due to the space limitations of the chassis, this port can be ignored | |
| 1 x 3pin AT_mode pin header, used for turning on/off, self-starting function upon power-on. Note: This model supports both BIOS configuration and motherboard cap jumping configuration | |
| 1 x 9pin (2mm pitch) serial port pin headers, which can be used to expand DB9pin serial ports (RS232) | |
| 1 x 13pin(2mm pitch)TPM pin layout for expanding the TPM encryption module."Note: FTPM2.0 has been enabled by default in the BIOS Analysis: The TPM2.0 encryption module is a hardware version of the module and belongs to the physical encryption chip. FTPM is an encryption method for firmware versions and can be understood as virtual encryption technology. | |
| 1 x 8-pin USB2.0 header (2mm pitch), used for expanding USB2.0 ports | |
| 1 x 4-pin CPU fan pin header (1.35mm pitch) | |
| Power Adapter | DC 12V 5A |
| OS Support | Windows 10 |
| Windows 11 | |
| Linux/Linux etc/Ubuntu/Pfsense/Opnsense/Proxmox | |
| Features | Support power-on, Wake on lan, Wake on lan, PXE(UEFI only) |
| Support TPM2.0 | |
| Working Temperature | -20℃ TO ﹢60℃ |
| Storage Temperature | ﹣20℃ TO ﹢70℃, 10%~85% non-condensing |

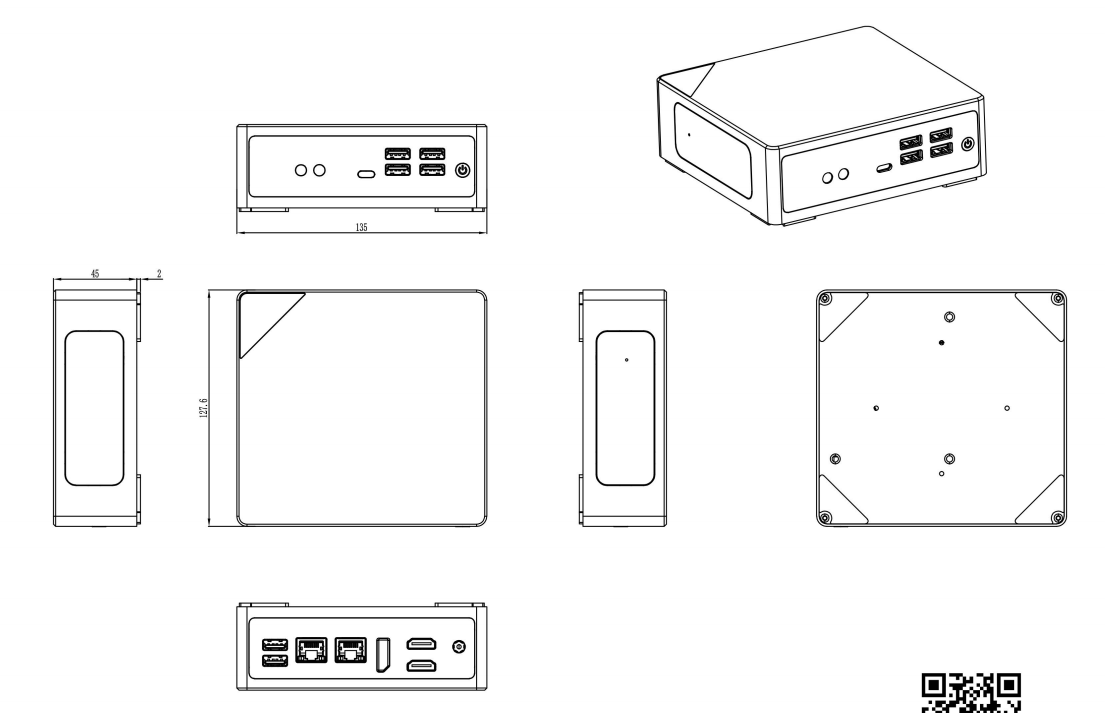

| Dimension | 135 x 128 x 45mm |
| Construction | Fan cooling |
| Package | 1 x Mini PC |
| 1 x AC adapter | |
| 1 x Power cord | |
| 1 x SATA cable | |
| 1 x User guide |
